DIY spiral-prismatic packing
Here is a DIY of spiral-prismatic packing that Odessit mentioned in his post http://homedistiller.org/forum/viewtopi ... g&start=15

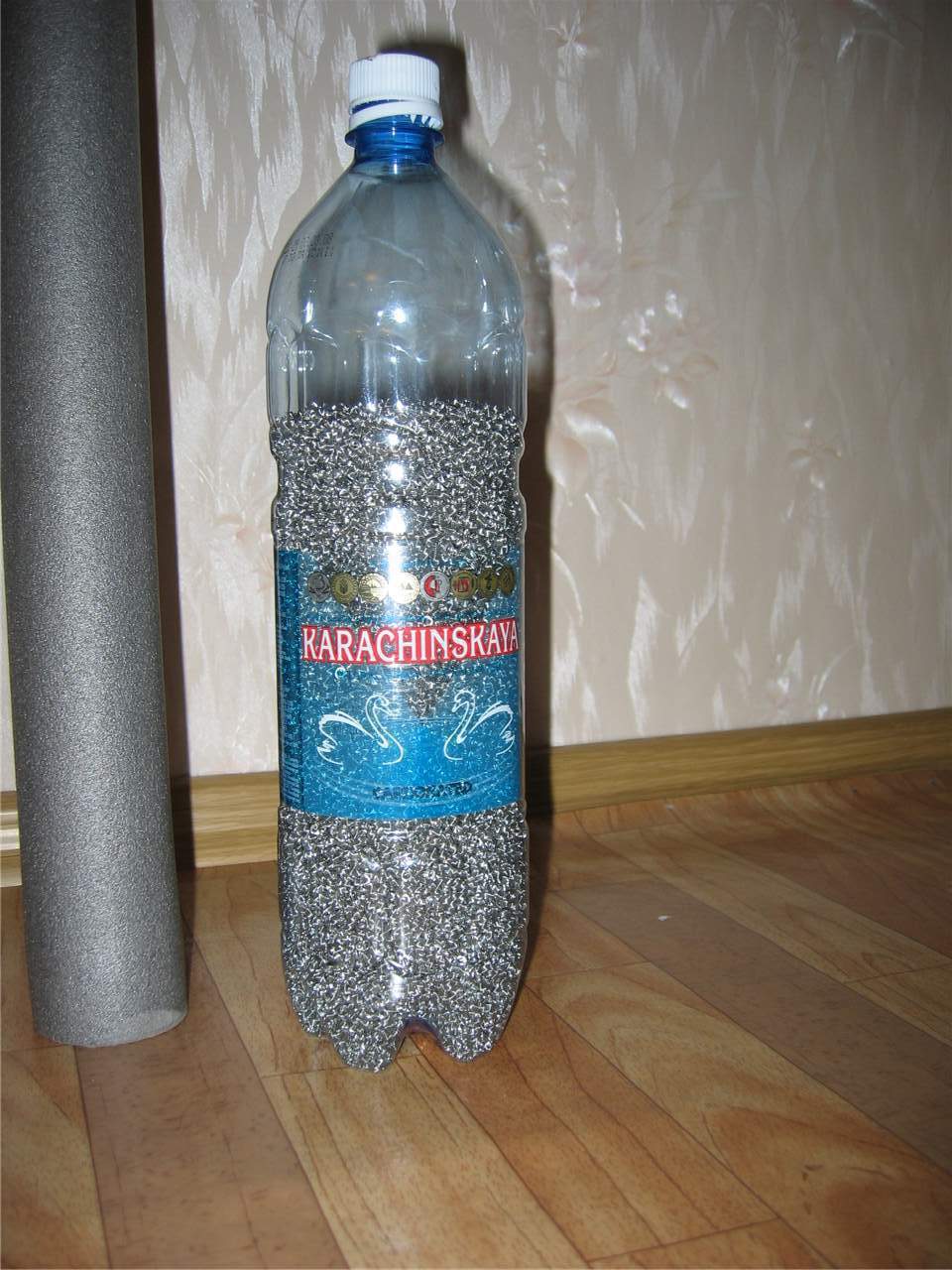

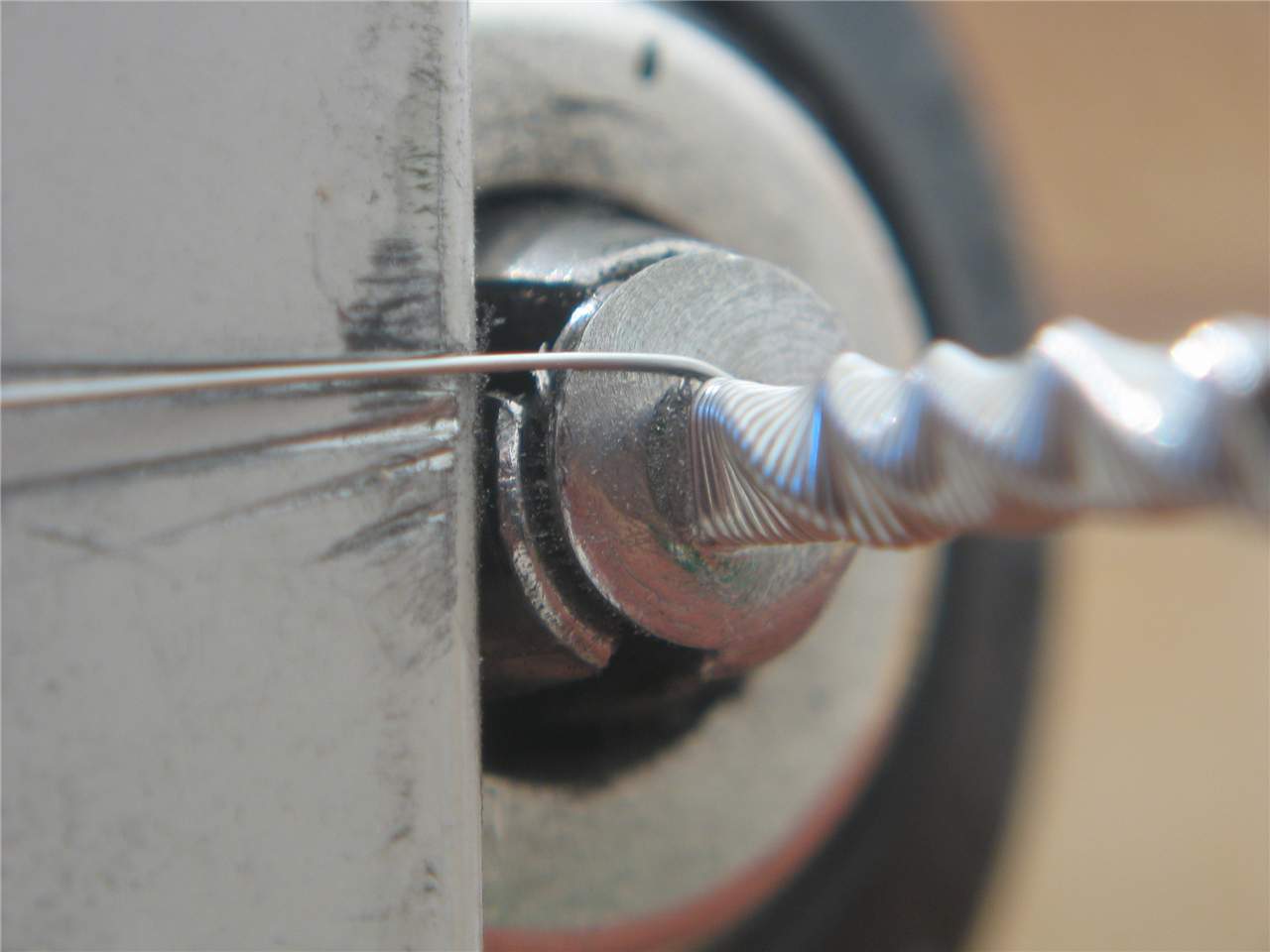

A photo is worth a thousand words so: By changing the form of mandril, different forms of packing can be achieved.
Measurements for the optimal performance must be:
diameter of packing 1/10 to 1/12 diameter of column
diameter of SS wire 1/10 diameter of packing
Pictures were taken from the forum of like-minded people in Russia
http://homedistiller.ru/forum/index.php?topic=50.60" onclick="window.open(this.href);return false;" rel="nofollow
Thanks to Altair
A photo is worth a thousand words so: By changing the form of mandril, different forms of packing can be achieved.
Measurements for the optimal performance must be:
diameter of packing 1/10 to 1/12 diameter of column
diameter of SS wire 1/10 diameter of packing
Pictures were taken from the forum of like-minded people in Russia
http://homedistiller.ru/forum/index.php?topic=50.60" onclick="window.open(this.href);return false;" rel="nofollow
Thanks to Altair
- LWTCS
- Site Mod
- Posts: 13035
- Joined: Mon Jan 26, 2009 6:04 pm
- Location: Treasure Coast
Re: DIY spiral-prismatic packing
Very cool. How long did it take to manufacture that bottle of packing?
Trample the injured and hurdle the dead.
-
- Novice
- Posts: 34
- Joined: Sat Aug 22, 2009 2:41 am
- Location: Lithuania
Re: DIY spiral-prismatic packing
If using hand scissors then about two weeks two hours a day

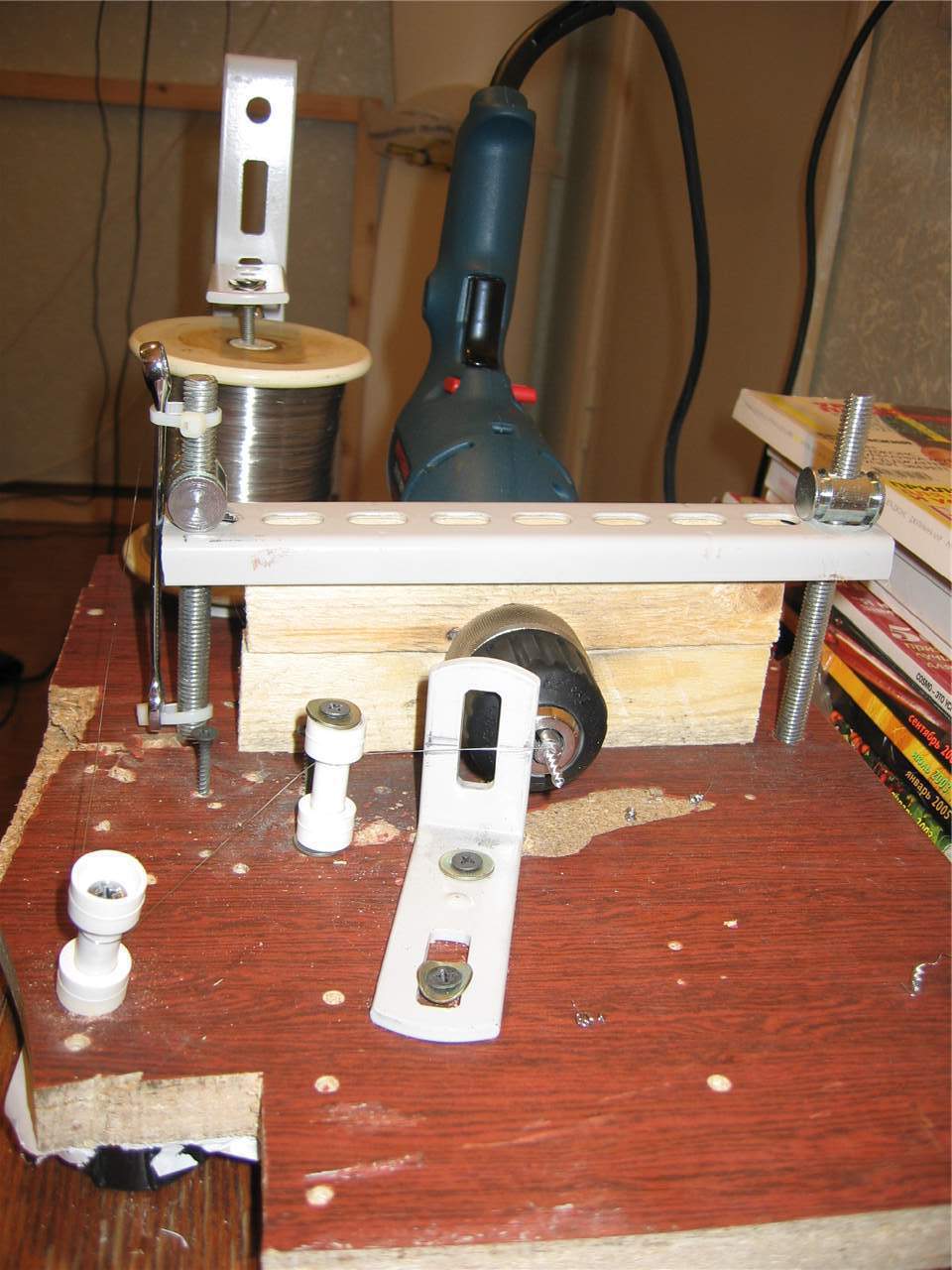

But you can construct another simple bench to automatize that work a bit.

But you can construct another simple bench to automatize that work a bit.
-
- Novice
- Posts: 66
- Joined: Wed Dec 16, 2009 6:22 pm
Re: DIY spiral-prismatic packing
Is there a place you can just buy this stuff from?
-
- Novice
- Posts: 34
- Joined: Sat Aug 22, 2009 2:41 am
- Location: Lithuania
Re: DIY spiral-prismatic packing
Haven't heard of any e-store providing them. Only a few Russian folks who sell directly.
-
- Swill Maker
- Posts: 311
- Joined: Tue Jan 18, 2011 1:28 pm
- Location: UK
Re: DIY spiral-prismatic packing
So that's what you were up to with the compressed air valve

- Bushman
- Admin
- Posts: 18373
- Joined: Tue Mar 30, 2010 5:29 am
- Location: Pacific Northwest
Re: DIY spiral-prismatic packing
Very cool, I wished that link in Russia had an English translation. I would have liked to read the comments.
-
- Distiller
- Posts: 1055
- Joined: Thu Dec 29, 2011 5:40 pm
- Location: New England
Re: DIY spiral-prismatic packing
Very cool, but why not use copper wire?
"It's hard to argue with the government. Remember, they run the Bureau of Alcohol, Tobacco and Firearms, so they must know a thing or two about satisfying women." --- Scott Adams
-
- Rumrunner
- Posts: 607
- Joined: Fri Nov 19, 2010 1:07 pm
Re: DIY spiral-prismatic packing
@ Washashore,
You beat me to the Keyboard. Asking the copper wire question was also my question to manu de hanoi.
Regards,
Coaster
You beat me to the Keyboard. Asking the copper wire question was also my question to manu de hanoi.
Regards,
Coaster
-
- Trainee
- Posts: 798
- Joined: Mon Aug 13, 2007 9:06 am
Re: DIY spiral-prismatic packing
hi,
Copper is expensive here in VN (but stainless steel is cheap) that's one reason,
other reason is that copper corrodes and that given the expense of making SPP, you may not want that
other reason is that copper is soft and that it prolly wouldn't stand the tension at a similar thickness - I'm using one of the thinnest possible wire gauge.
I put some copper foil in the columns, that doesnt mean all the column has to be made of copper.
However if you google around you'll find that some people can use copper for SPP.
Copper is expensive here in VN (but stainless steel is cheap) that's one reason,
other reason is that copper corrodes and that given the expense of making SPP, you may not want that
other reason is that copper is soft and that it prolly wouldn't stand the tension at a similar thickness - I'm using one of the thinnest possible wire gauge.
I put some copper foil in the columns, that doesnt mean all the column has to be made of copper.
However if you google around you'll find that some people can use copper for SPP.
-
- Trainee
- Posts: 803
- Joined: Thu Feb 07, 2013 8:43 am
Re: DIY spiral-prismatic packing
I wonder if aviation safety wire is made of SS?
-
- Master of Distillation
- Posts: 4490
- Joined: Tue Dec 18, 2012 5:00 pm
Re: DIY spiral-prismatic packing
Most aviation lock wire has iron. It is mostly nickle with some copper.
I had the same thought but checked my stash to see.
I had the same thought but checked my stash to see.
New Distiller's Reading http://homedistiller.org/forum/viewforum.php?f=46
Novice Guide to Cuts http://homedistiller.org/forum/viewtopi ... 40&start=0
Novice spoon feed http://homedistiller.org/forum/viewtopi ... 15&t=52975
Novice Guide to Cuts http://homedistiller.org/forum/viewtopi ... 40&start=0
Novice spoon feed http://homedistiller.org/forum/viewtopi ... 15&t=52975
- Odin
- Master of Distillation
- Posts: 6844
- Joined: Wed Nov 10, 2010 10:20 am
- Location: Three feet below sea level
Re: DIY spiral-prismatic packing
For people interested in buying SPP: I am selling it.kol2nas wrote:Haven't heard of any e-store providing them. Only a few Russian folks who sell directly.
Odin.
"Great art is created only through diligent and painstaking effort to perfect and polish oneself." by Buddhist filosofer Daisaku Ikeda.
-
- Rumrunner
- Posts: 716
- Joined: Sun Jul 01, 2012 6:09 am
- Location: Nova Scotia, Canada
Re: DIY spiral-prismatic packing
You can read it using Google translate. Here is a translation of the first post on the page cited, which is page 4 of the thread:Bushman wrote:Very cool, I wished that link in Russia had an English translation. I would have liked to read the comments.
When you worked at a small pottery and firing it, so purely for fun decided to try to create one clay beads for packing. Took coriander seeds (They are ideal balls) and covered with a layer of clay, the method drazhzhirovaniya seeds. Catal blocked until a diameter of 5-6mm, the last portion of the clay added starch to obtain a porous surface (starch during firing fading). After drying, fell asleep in a thick tin can and put it in the oven on the wood, put on a little more wood and set on fire. An hour later, oven burnt and that's what happened (How to insert a picture?) Filled with water exposed to the street stood in the water for almost a month, freezing razmerzaya but not soaked. Who house gas, the problems with the firing nor any.
M
- Odin
- Master of Distillation
- Posts: 6844
- Joined: Wed Nov 10, 2010 10:20 am
- Location: Three feet below sea level
Re: DIY spiral-prismatic packing
Okay, that clarifies things ...
Odin.
Odin.
"Great art is created only through diligent and painstaking effort to perfect and polish oneself." by Buddhist filosofer Daisaku Ikeda.
-
- Rumrunner
- Posts: 716
- Joined: Sun Jul 01, 2012 6:09 am
- Location: Nova Scotia, Canada
Re: DIY spiral-prismatic packing
Hey, it's really fun looking through this forum. It's http://www.HomeDistiller.ru" onclick="window.open(this.href);return false;" rel="nofollow . If you have the Google Toolbar, just click on Translate. In fact, once you use Translate, everything that's in another language gets turned into English on subsequent uses.
M
M
-
- Trainee
- Posts: 803
- Joined: Thu Feb 07, 2013 8:43 am
Re: DIY spiral-prismatic packing
Figures. I was going to check manufacturer specs on a roll or two today and see.
- DAD300
- Master of Distillation
- Posts: 2842
- Joined: Wed Mar 02, 2011 11:46 am
- Location: Southern U.S.
Re: DIY spiral-prismatic packing
Some aviation lock wire is annealed SS. There is a lot of fishing line that is hardened SS. But the best I found in quantity is SS mig welding wire. It comes in better sizes (.020-.036) and quantities at about $3 a pound.
A liter of "C" size SPP takes about 3.7 pounds of wire. A 2" x 30" column will take about 1.5 liters. A 3" x 30" column will take about 3.5 liters.
A liter of "C" size SPP takes about 3.7 pounds of wire. A 2" x 30" column will take about 1.5 liters. A 3" x 30" column will take about 3.5 liters.
CCVM http://homedistiller.org/forum/viewtopi ... d#p7104768" onclick="window.open(this.href);return false;" rel="nofollow
Ethyl Carbamate Docs viewtopic.php?f=6&t=55219&p=7309262&hil ... e#p7309262
DSP-AR-20005
Ethyl Carbamate Docs viewtopic.php?f=6&t=55219&p=7309262&hil ... e#p7309262
DSP-AR-20005
- Odin
- Master of Distillation
- Posts: 6844
- Joined: Wed Nov 10, 2010 10:20 am
- Location: Three feet below sea level
Re: DIY spiral-prismatic packing
And I'd advise to make the SPP a bit more open. Easier drainage, higher possible energy input, more reflux, more SPP in its optimal working range. And some other benefits that go beyound this tread's goal & topic.
Odin.
Odin.
"Great art is created only through diligent and painstaking effort to perfect and polish oneself." by Buddhist filosofer Daisaku Ikeda.
