Sight Glass fun!!

Post by T-Pee »

After fighting soldering SS and finding success with a couple simple EZ flanges today's sac cleaning run with a new sight glass was a ball! I learned more today about how my CM runs than I have running blind for the last two years. Now I know without a doubt that I've been running this column in a flooded condition most of the time since I have the heat settings marked on the propane regulator and a few minutes of experimentation. This alone will help me make a much better product.

In this thread: http://homedistiller.org/forum/viewtopi ... 8#p7285988 bearriver says:
bearriver wrote:I would find out how much heat it takes to flood that column, then back off until the flooding becomes settled above or inside the packing. If you can keep the flooding just above the packing in a safe and controlled manner (stable) then it will perform much better. I call running in this fashion the sweet spot for my reflux still.


I also seem to remember Dad posting a similar video with the same comment.

I believe both were right in that the column held >90% until the sight glass suddenly fogged signaling the onset of tails which it did quite suddenly, by the way. The glass was bubbling merrily along, I looked down at the parrot and when I looked up less than ten seconds later found this:
Sight glass tails.jpg

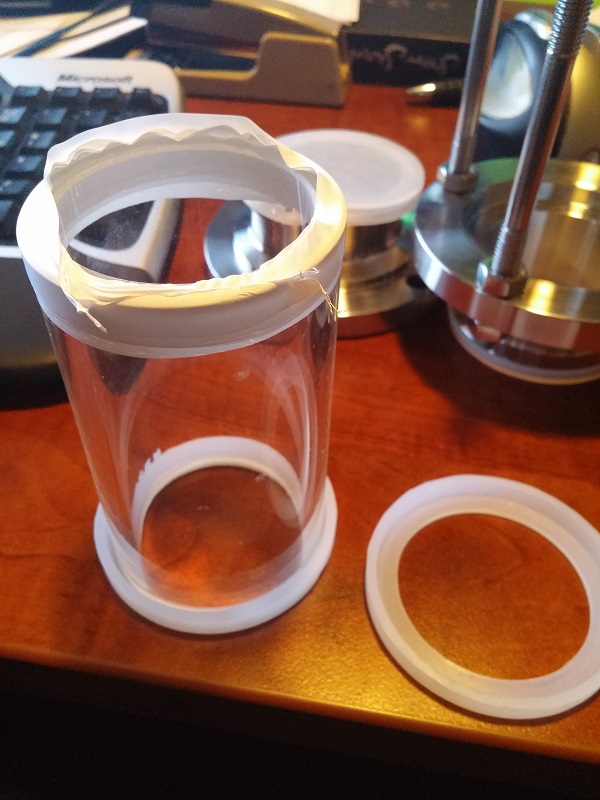

I marked that jar by situating it with an empty between where the sight glass was bubbling and the tails where the bubbling suddenly stopped and the glass fogged. The difference between the jars was striking and added a new way for me to find the tails in a run without using my senses of taste and smell after airing out.
Here's a pic of the old column with a new window:

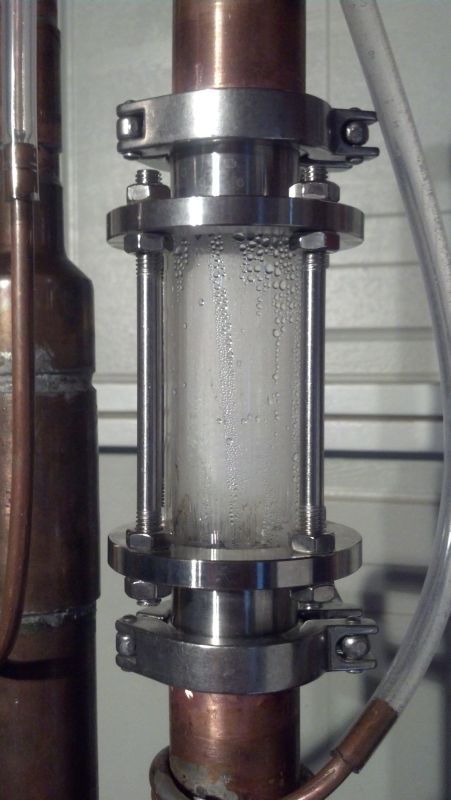

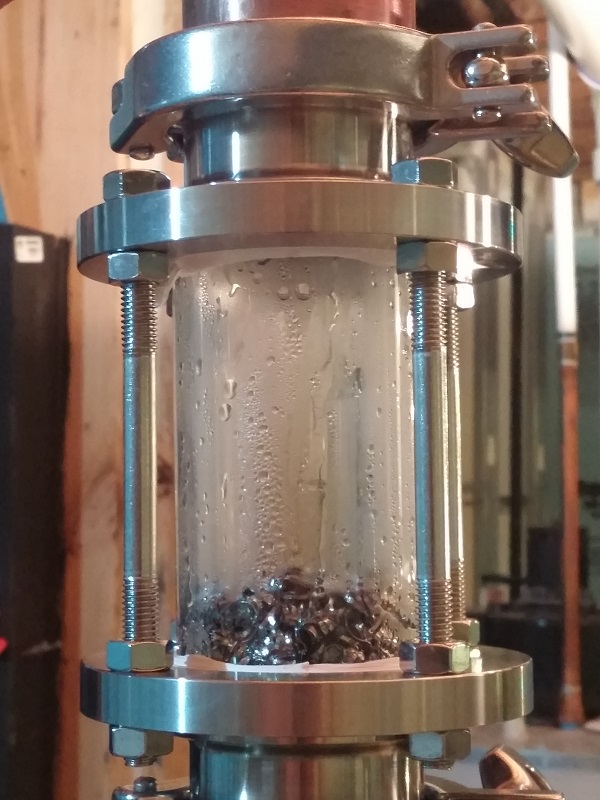

post sight glass column.jpg
Oh! And if today wasn't cool enough, I repurposed this portable swamp cooler to supply cooling water to the condensers. I found it almost new on top of everything in a dumpster a while back and finally got around to swapping the dinky onboard pump to the fountain pump that I was using in a barrel full of water which heated up pretty good by the end of a run. The still stayed nice and cool throughout a 4 hour run and used about three gallons of water in evaporative cooling.

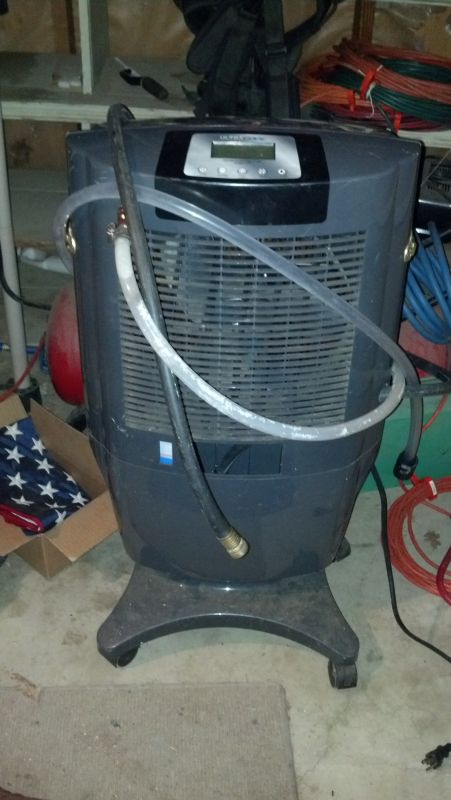

Portable swamp cooler.jpg
Needless to say, I've had a great day with the hobby today! :thumbup:

tp
User avatar
humbledore
Site Donor
Site Donor
Posts: 898
Joined: Tue Apr 16, 2013 1:12 pm
Location: The third coast

Re: Sight Glass fun!!

Post by humbledore »

Like it. Can you explain more about how you used to run it and how you would do it now? Also I have ordered parts from that same vendor, good prices.
User avatar
T-Pee
Site Donor
Site Donor
Posts: 4355
Joined: Mon Feb 18, 2013 9:20 pm
Location: The wilds of rural California

Re: Sight Glass fun!!

Post by T-Pee »

I guess I ran it more like a pot still with reflux. If I wanted more takeoff I turned the heat up. Turns out I was flooding the column doing that. Flooding is the main reason I wanted the sight glass...that and the fun of watching stuff drip and boil. It wasn't much of a big deal when I'm going whiskeys or rum but it will make a huge difference when I run the All-Bran and neutrals. I also imaging it will improve the flavored drinks by simply making sure that I'm not flooding the column and contaminating the takeoff.
Kind of a WAG but it makes sense to me.

Now, I'll be watching that glass and running the heat so the reflux boils anywhere in the glass and marking the jar where the glass fogs up. I'll be running slower and probably making a better product for it.

tp
johnarms
Novice
Posts: 83
Joined: Fri Jan 25, 2013 5:15 pm
Location: Canada

Re: Sight Glass fun!!

Post by johnarms »

just ordered sight glass and some other stuff from the same vendor as well, TP how long did delivery take? I'm in Canada btw.
User avatar
Brutal
Site Donor
Site Donor
Posts: 1349
Joined: Sat May 18, 2013 6:02 pm

Re: Sight Glass fun!!

Post by Brutal »

Nice!!
Steam injection rig http://tinyurl.com/kxmz8hy
All grain corn mash with steam injection and enzymes http://tinyurl.com/mp6zdt5
Inner tube condenser http://tinyurl.com/zkp3ps6
User avatar
skow69
Site Donor
Site Donor
Posts: 3230
Joined: Tue Dec 06, 2011 3:03 am
Location: Cascadia

Re: Sight Glass fun!!

Post by skow69 »

Looking good, tp. So you went with the sight glass on top after all, eh? Last I saw you were leaning pretty heavily toward putting it on the bottom.
Distilling at 110f and 75 torr.
I'm not an absinthe snob, I'm The Absinthe Nazi. "NO ABSINTHE FOR YOU!"
User avatar
T-Pee
Site Donor
Site Donor
Posts: 4355
Joined: Mon Feb 18, 2013 9:20 pm
Location: The wilds of rural California

Re: Sight Glass fun!!

Post by T-Pee »

johnarms wrote:just ordered sight glass and some other stuff from the same vendor as well, TP how long did delivery take? I'm in Canada btw.
Under 2 weeks iirc. The extra gasket and ferrule took longer.
skow69 wrote:Looking good, tp. So you went with the sight glass on top after all, eh? Last I saw you were leaning pretty heavily toward putting it on the bottom.
Thanks! I gave it a lot of thought and decided my priority was seeing what the reflux was doing rather than watching fora puke. Mission accomplished.

tp (independent thinker)
User avatar
T-Pee
Site Donor
Site Donor
Posts: 4355
Joined: Mon Feb 18, 2013 9:20 pm
Location: The wilds of rural California

Re: Sight Glass fun!!

Post by T-Pee »

I'd like to get some comments from those that run sight glasses regarding the video. Is this in fact how it should be run or...?

tp
User avatar
skow69
Site Donor
Site Donor
Posts: 3230
Joined: Tue Dec 06, 2011 3:03 am
Location: Cascadia

Re: Sight Glass fun!!

Post by skow69 »

You could prolly take it up a little, kinda hard to say without seeing the top of the packing. But we are getting close to splitting hairs at this point. Here is what mine looked like a while back. http://homedistiller.org/forum/viewtopi ... 17&t=53122

Last run I left a good 6" of visible head space and found out that I can easily fill that up with dancing reflux and lose the top of the display into the copper above. It took more power to do it, but the charge ABV was lower so I don't think it's a fair comparison. I could also see what looks like boiling bubble creation much deeper into the packing bed this time, like 4 inches or so. Upon further reflection and re-re-re-reading Odin's wisdom I now think that might be a measure of the "aquatic environment" or "fluidized bed". [I don't know why I can't get comfortable with those phrases.] Or maybe it's just the packing is looser at the top. I'm thinking I'll leave 10 or 12 inches open next time and see how it goes.

If I were you I wouldn't be afraid to crank it up a little more next time and see what happens. You will still get a distinct change in the sound at the top well before it pukes. Oh wait, is that a CM? I don't know if you will hear it unless there is a vent on top, and I don't remember your latest modification. LOL

Stay in touch,
skow
Distilling at 110f and 75 torr.
I'm not an absinthe snob, I'm The Absinthe Nazi. "NO ABSINTHE FOR YOU!"
User avatar
DAD300
Master of Distillation
Posts: 2839
Joined: Wed Mar 02, 2011 11:46 am
Location: Southern U.S.

Re: Sight Glass fun!!

Post by DAD300 »

Good video. The glass certainly shows you can balance it right at the top of the packing.

What are you using for packing in that video?

Reason I ask, is that I also think it shows you have optimized the density of the packing. If it were too loose you couldn't hold a "aquatic enviroment" at the top. Used the phrase just for skow69...
CCVM http://homedistiller.org/forum/viewtopi ... d#p7104768" onclick="window.open(this.href);return false;" rel="nofollow
Ethyl Carbamate Docs viewtopic.php?f=6&t=55219&p=7309262&hil ... e#p7309262
DSP-AR-20005
User avatar
T-Pee
Site Donor
Site Donor
Posts: 4355
Joined: Mon Feb 18, 2013 9:20 pm
Location: The wilds of rural California

Re: Sight Glass fun!!

Post by T-Pee »

skow69 wrote:If I were you I wouldn't be afraid to crank it up a little more next time and see what happens. You will still get a distinct change in the sound at the top well before it pukes. Oh wait, is that a CM? I don't know if you will hear it unless there is a vent on top, and I don't remember your latest modification.
CM with an added coldfinger mounted in the removable column cap. The coldfinger reaches to the top of the glass and the packing is just below the bottom of the glass.
DAD300 wrote:What are you using for packing in that video?

Reason I ask, is that I also think it shows you have optimized the density of the packing. If it were too loose you couldn't hold a "aquatic environment" at the top.
Stainless scrubbies this time. When I pulled the copper scrubbies to do the mod they were pretty black and I had a few packages of the SS.
I packed them so that they would approximate the resistance that I had with the copper ones as I felt that I had gotten that part just right. Might as well continue that way.

tp
User avatar
Twinrivers
Site Donor
Site Donor
Posts: 103
Joined: Sun Nov 16, 2014 3:59 pm
Location: Way up north where twin rivers meet...

Re: Sight Glass fun!!

Post by Twinrivers »

Awesome job on the sight glass TP. You can probably bring those copper scrubbers back to life by boiling them in vinegar. I boil my bubble plates in vinegar and they come out shiny new
User avatar
skow69
Site Donor
Site Donor
Posts: 3230
Joined: Tue Dec 06, 2011 3:03 am
Location: Cascadia

Re: Sight Glass fun!!

Post by skow69 »

DAD300 wrote:Reason I ask, is that I also think it shows you have optimized the density of the packing. If it were too loose you couldn't hold a "aquatic enviroment" at the top. Used the phrase just for skow69...
Keep using it. If I see it enough maybe I'll get the hang of it. Hell, it only took me six months to figure out what a "sparge" was.
Distilling at 110f and 75 torr.
I'm not an absinthe snob, I'm The Absinthe Nazi. "NO ABSINTHE FOR YOU!"
User avatar
T-Pee
Site Donor
Site Donor
Posts: 4355
Joined: Mon Feb 18, 2013 9:20 pm
Location: The wilds of rural California

Re: Sight Glass fun!!

Post by T-Pee »

Twinrivers wrote:Awesome job on the sight glass TP. You can probably bring those copper scrubbers back to life by boiling them in vinegar. I boil my bubble plates in vinegar and they come out shiny new
Understood, but if you had seen the ones I hauled out of there... :think:

tp
johnarms
Novice
Posts: 83
Joined: Fri Jan 25, 2013 5:15 pm
Location: Canada

Re: Sight Glass fun!!

Post by johnarms »

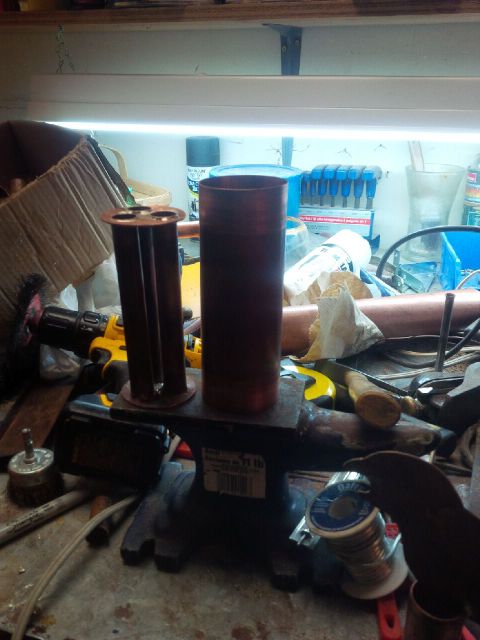

Thanks for the heads up on the sight glass source TP! My 3" came today as well as 3.5 ltrs of BigSwedes' SPP, still waiting for my 2". Its like Christmas, can't wait to hook it up. Was building a 2" deflegmator for fun when they arrived. Thanks again for the info.
Attachments
3inch sightglass and SPP.jpg
Full_moon
Site Donor
Site Donor
Posts: 191
Joined: Wed Jan 01, 2014 11:58 am
Location: So. Ca.

Re: Sight Glass fun!!

Post by Full_moon »

Thanks for the sight glass source TP. My shotgun condenser hasn,t arrived yet to run it in conjunction with my MH cm. So after cleaning, I put it in the column for a spirit run of UJSSM .I had some low wines saved up. One thing for sure, when you hit tails it fogs up real nice.
A nice tool for that purpose.
White_Lightning_Rod
Site Donor
Site Donor
Posts: 437
Joined: Mon Dec 23, 2013 3:22 pm
Location: The Valley of Many Deer

Re: Sight Glass fun!!

Post by White_Lightning_Rod »

I have been inspired by the fun you have been having so In the last few months Ive been building and working to have some of that same fun myself. Here is my version of the same video. 40" x 2" modular CM with a 4" RC. I have lengths to go from 6" of packed colum all the way up to 58", been running at 40" because of ceiling restrictions for now. The packing is BigSwede SPP. Im still learning how to drive her, Ive gotten as high as 95% after removing fores, but for now I have been making some pretty good single run whiskey's in the mid 80%s. Also it has been FUN!!!

HD forum, the best damn group of criminals and outlaws you'll ever meet.
User avatar
T-Pee
Site Donor
Site Donor
Posts: 4355
Joined: Mon Feb 18, 2013 9:20 pm
Location: The wilds of rural California

Re: Sight Glass fun!!

Post by T-Pee »

:thumbup:

tp
User avatar
rgreen2002
Site Donor
Site Donor
Posts: 1309
Joined: Sun Dec 08, 2013 2:57 pm
Location: Northeastern USA

Re: Sight Glass fun!!

Post by rgreen2002 »

Hey T-Pee and White_Lightning_Rod -I just received my 360 sight glass... She is beautiful but I notice the seals on the end of the glass are food grade silicone. What were yours made of?
HD Glossary - Open this
A little spoon feeding *For New & Novice Distillers - start here
BEST WAY TO GET ANSWERS FROM HOME DISTILLER
"In theory there is no difference between theory and practice. In practice there is."
User avatar
T-Pee
Site Donor
Site Donor
Posts: 4355
Joined: Mon Feb 18, 2013 9:20 pm
Location: The wilds of rural California

Re: Sight Glass fun!!

Post by T-Pee »

Mine are PTFE. You can get them at brew shops or other sources.

tp
User avatar
rgreen2002
Site Donor
Site Donor
Posts: 1309
Joined: Sun Dec 08, 2013 2:57 pm
Location: Northeastern USA

Re: Sight Glass fun!!

Post by rgreen2002 »

T-Pee wrote:Mine are PTFE. You can get them at brew shops or other sources.

tp
Thanks T-Pee. They are not the typical gasket, they are form fitting around the glass almost like a cap (with a hole of course). Arrrgh.... the hunt....begins.
HD Glossary - Open this
A little spoon feeding *For New & Novice Distillers - start here
BEST WAY TO GET ANSWERS FROM HOME DISTILLER
"In theory there is no difference between theory and practice. In practice there is."
joeymac
Swill Maker
Posts: 306
Joined: Sat Oct 17, 2015 6:22 pm

Re: Sight Glass fun!!

Post by joeymac »

I love the glass fogging being used as a tails indicator!

I wonder if a sight glass would also work well in an LM still to indicate the start of the tails, too. Would it still fog up if the sight glass was put right between the top of the packing and the LM takeoff plates? Or perhaps the batter location would be above the LM takeoff plates... Hmmm. :think:
"Woe to those who are heroes at drinking wine and champions at mixing drinks" - God (Isaiah 5:22)
So evidently, God wants us to drink our whiskeys single barrel and our Bourbons neat.
Deerhunter
Site Donor
Site Donor
Posts: 477
Joined: Sun Jan 27, 2013 10:01 pm
Location: New York

Re: Sight Glass fun!!

Post by Deerhunter »

Wish I had that bubbling. Is that just from copper packing or are there plates below the glass?
Sky Diving without a parachute is a once in a life time experience!
User avatar
T-Pee
Site Donor
Site Donor
Posts: 4355
Joined: Mon Feb 18, 2013 9:20 pm
Location: The wilds of rural California

Re: Sight Glass fun!!

Post by T-Pee »

White_Lightning_Rod wrote:The packing is BigSwede SPP.
tp
WIski
Site Donor
Site Donor
Posts: 726
Joined: Thu Feb 23, 2012 6:39 pm

Re: Sight Glass fun!!

Post by WIski »

TP
What are using to seal your glass to the stainless sight glass ends?
User avatar
rgreen2002
Site Donor
Site Donor
Posts: 1309
Joined: Sun Dec 08, 2013 2:57 pm
Location: Northeastern USA

Re: Sight Glass fun!!

Post by rgreen2002 »

Man I just love this thing.

My sight glass was up and running today. It come with food grade silicone seals... :twisted: . I had to improvise so i took it apart and wrapped the glass with PTFE tape

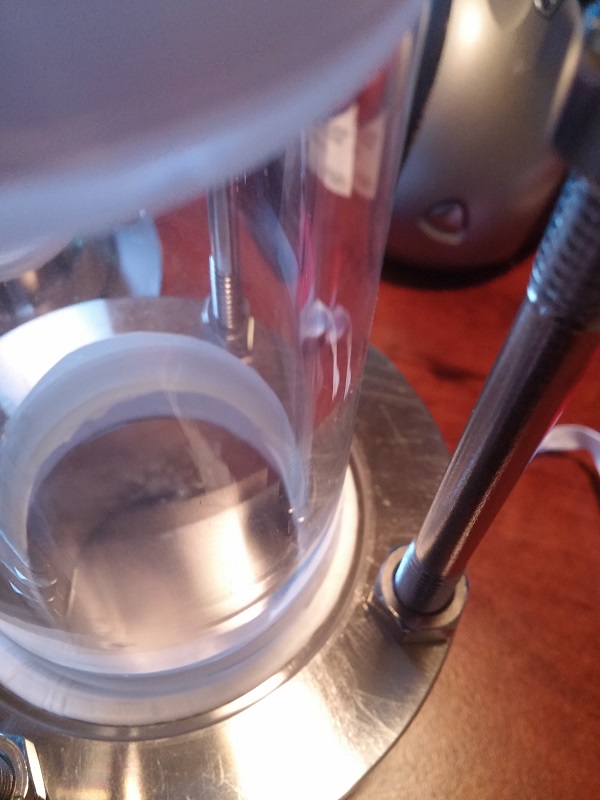

tapaed glass 1.jpg

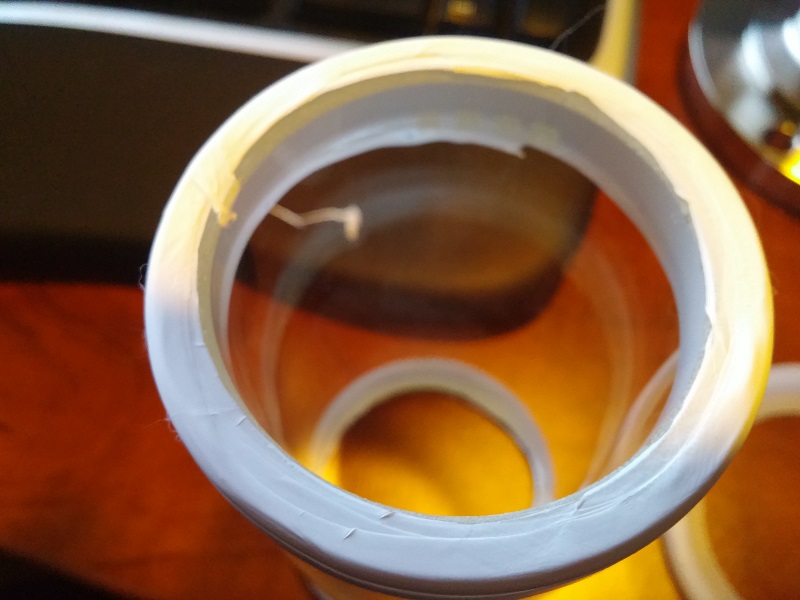

made an overhang to cover the indise of the glass then finished the wrap

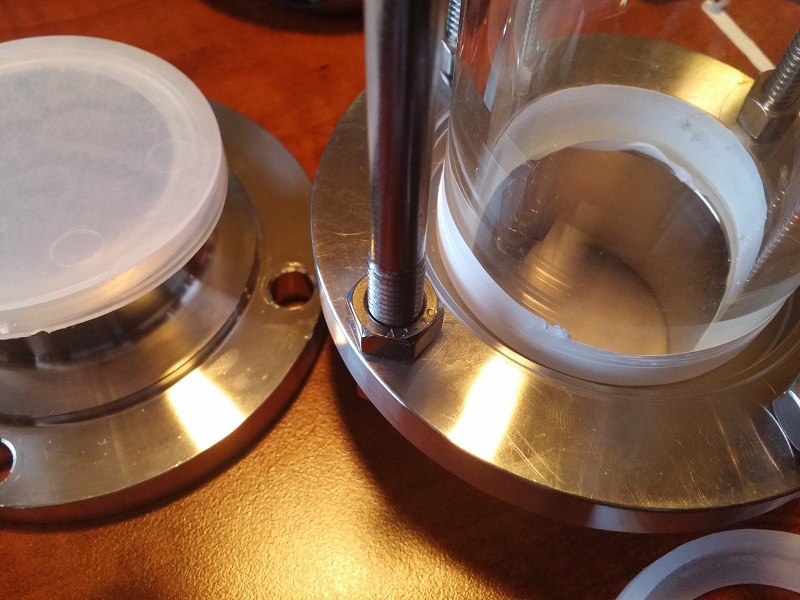

tapaed glass 2.jpg
Because of the big gap between the glass and the housing I had to use the silicone gasket... :( .
Big F-ing gap
Big F-ing gap

I did wrap it a few times with PTFE to get it covered.
Damn silicone
Damn silicone
Future plan to either 1. Find a PTFE gasket to fit, 2. Fully wrap in PTFE tape, 3. Make an everlasting gasket to fit up the glass and in the gap.

Now the good stuff...
HD Glossary - Open this
A little spoon feeding *For New & Novice Distillers - start here
BEST WAY TO GET ANSWERS FROM HOME DISTILLER
"In theory there is no difference between theory and practice. In practice there is."
User avatar
rgreen2002
Site Donor
Site Donor
Posts: 1309
Joined: Sun Dec 08, 2013 2:57 pm
Location: Northeastern USA

Re: Sight Glass fun!!

Post by rgreen2002 »

...THE videos!

The first is running in 100% reflux before collection even starts...



I like that the stream is running down the center of the column, as well as the sides of course...

A good close look at the glass. This is just after fores but before collecting heads and product. I left a little packing at the bottom so the packed column gained height and I didn't leave a huge gap between the packing and the plates.



During collection... this was a spirit run on a first gen sweetfeed that was stripped to 2 gallons of about 45% ABV. Diluted to about 25-30% in the keg



Toward the end I had a small temp jump and I could taste what I thought was very early tails. I switched out collecting jars just in case and then a minute later I got this



This was quickly followed by
Steamy tails...
Steamy tails...
All in all a good day and $60 well spent... plus a near half a gallon of good liquor.
HD Glossary - Open this
A little spoon feeding *For New & Novice Distillers - start here
BEST WAY TO GET ANSWERS FROM HOME DISTILLER
"In theory there is no difference between theory and practice. In practice there is."
User avatar
T-Pee
Site Donor
Site Donor
Posts: 4355
Joined: Mon Feb 18, 2013 9:20 pm
Location: The wilds of rural California

Re: Sight Glass fun!!

Post by T-Pee »

Get the condensate boiling visibly in the glass and hold it there. I think that's where you'll see top efficiency.

tp
User avatar
rgreen2002
Site Donor
Site Donor
Posts: 1309
Joined: Sun Dec 08, 2013 2:57 pm
Location: Northeastern USA

Re: Sight Glass fun!!

Post by rgreen2002 »

T-Pee wrote:Get the condensate boiling visibly in the glass and hold it there. I think that's where you'll see top efficiency.

tp
Yeah... I noticed that mine was a smooth ride as opposed to yours. Im assuming that its because I was hitting it with only 1500W. Results... I can't complain... about 2.2 liters of delicious product over 95%. It did take almost 4 hours though. So bump up the power, and the condenser, open the takeoff to stabilize where I want to land...?
HD Glossary - Open this
A little spoon feeding *For New & Novice Distillers - start here
BEST WAY TO GET ANSWERS FROM HOME DISTILLER
"In theory there is no difference between theory and practice. In practice there is."
User avatar
skow69
Site Donor
Site Donor
Posts: 3230
Joined: Tue Dec 06, 2011 3:03 am
Location: Cascadia

Re: Sight Glass fun!!

Post by skow69 »

Bump the power to make more vapor. The more the better. Increase condenser flow to stablize it. This will define your upper limit, also. Don't heat more than you can knock down. When you open the takeoff, then you can bump up the heat some more to compensate for what you are taking out of the system.

Having visual access reduces the guesswork some, doesn't it?
Distilling at 110f and 75 torr.
I'm not an absinthe snob, I'm The Absinthe Nazi. "NO ABSINTHE FOR YOU!"
Post Reply
