All grain brewing, filtering and rinsing purpose.

Post by Bujapat » Thu Aug 30, 2007 11:42 pm

To brew allgrain (or malt) washes isn't allways easy... So I had a look at a few homebrewers's sites and I've been inpired by some of their brewing vats...And I decided to build my own...
The goal is to have a 50 liters vat with filtering purpose, grain rincing purpose, insulated to keep 60-65°C for an hour or two...
Here's a little report !

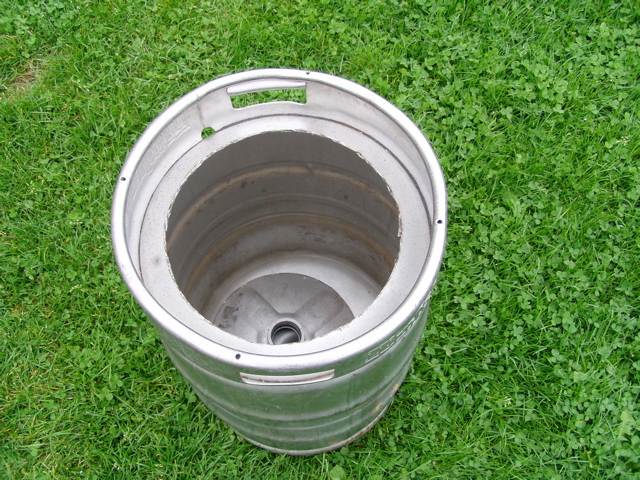

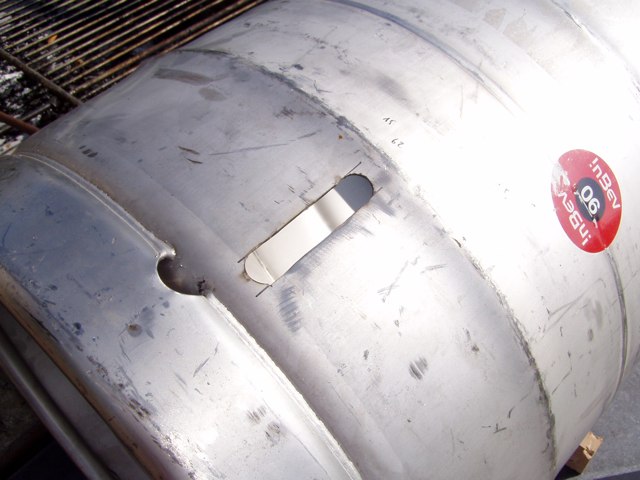

A bear (EDIT : beer, not bear :oops:) keg will be the vat. First step : open it :
Finished :
Image[/img]
The filter is made with an SS braided water conduit (3/4" diameter, 80 cm long) of which the inner rubber tube is removed.
To remove this rubber tube implicates to cut the ends and to replace the fittings that hold the braided SS thread in place. I did that with pieces of 2 copper tube one inside (15 mm) and one outside (19 mm). All the fitting is brazed with SnAG whith a special SS/Cu fluid.

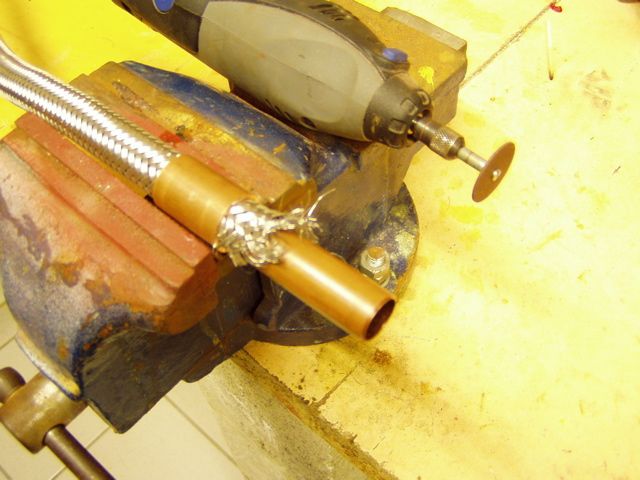

After cutting the threads and soldering :

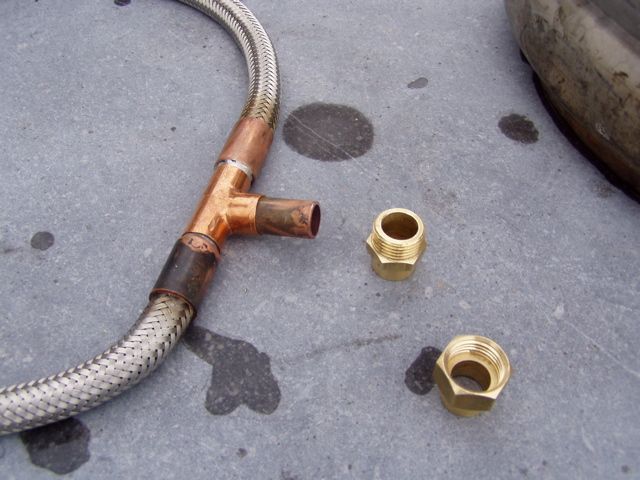

With a copper T , without soldering to allow cleaning :
Next step is to make the "shower"...
One meter of 15 mm copper tube, re-heated, the formed in a circle. You see on the pic the wood model for bending the tube. Little 1,5 mm holes were drilled, in 2 rows : one hrizontal (to spray the center of keg) and the other a little oblique (to spray around the keg). I drilled a hole every 3cm in each row.

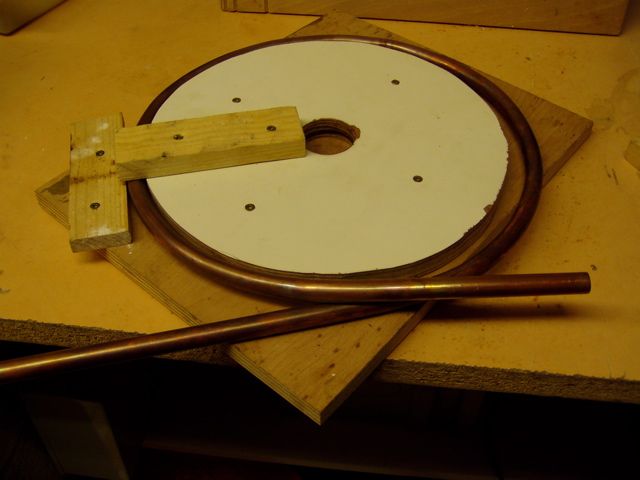

Bending the tube :

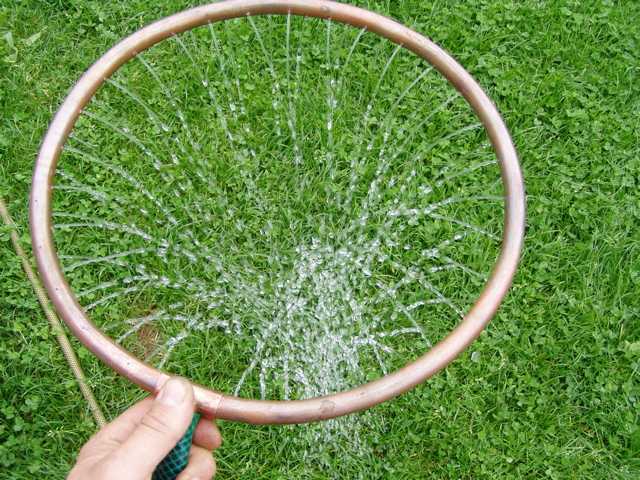

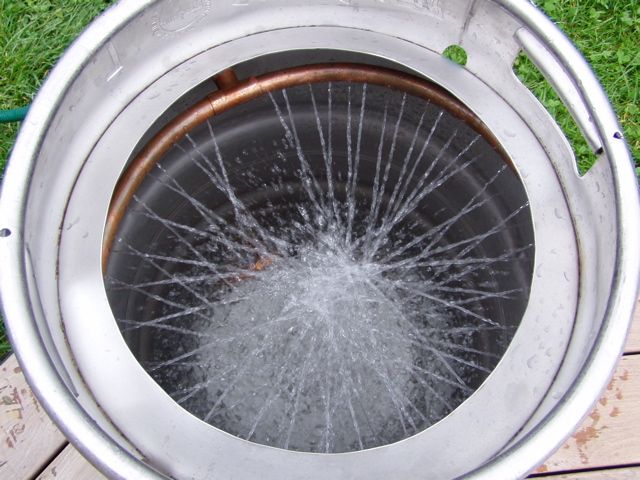

First test :

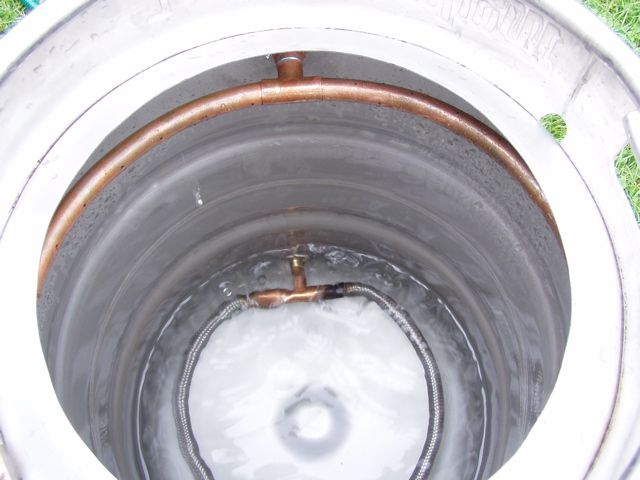

In the keg :
Tubes are passing trough the keg with 15 mm / 1/2" fittings, one on each side of wall, with Teflon joints.
View of the all thing assembled :
Now, soldering of intput and output tubes :

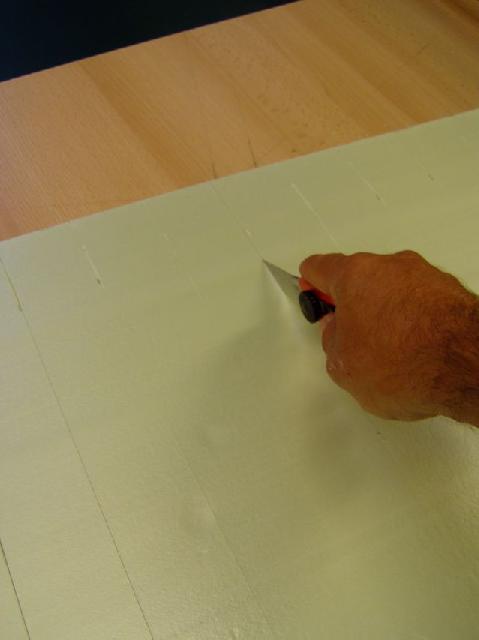

Insulation with PU cutted plate...

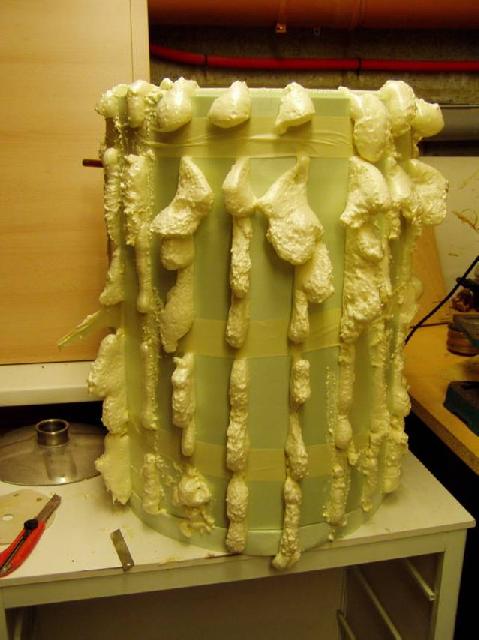

I complete insulation with PU foam : That's terrific !!!

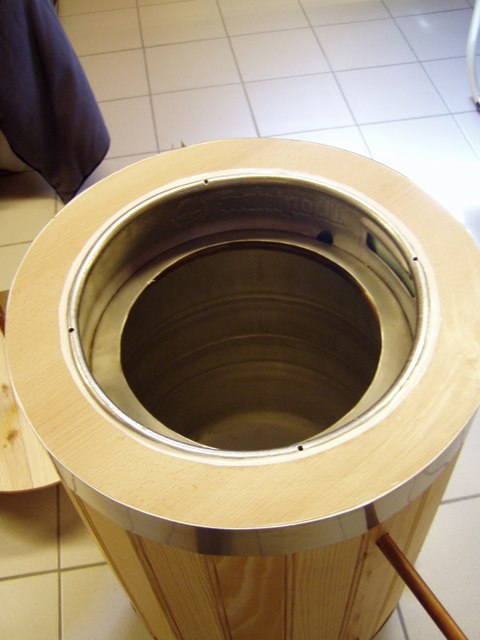

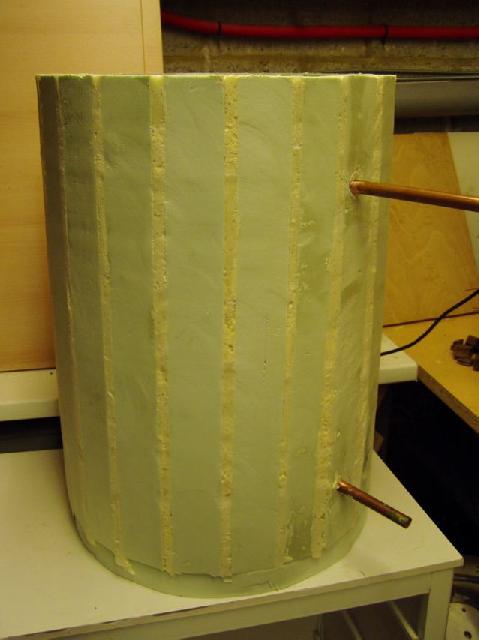

And after cutting and (light) sanding :
I still have to :
- make a wood covering,
- put 2 valves,
- make a motorised mixer,
- make a boiler to heat the water...

To be continued ...
Last edited by Bujapat on Fri Aug 31, 2007 1:38 am, edited 3 times in total.
I'm french speaking!

Boiler : 50 L (13 gal) beer keg, gas heated.
Reflux : 104 cm (41 inches) column 54 mm (2 inches) diameter withh SS scrubbers packing.
Potstill : 40 cm (15 inches) column 54 mm (2 inches) diameter without packing.

Aidas
Rumrunner
Posts: 577
Joined: Mon Feb 06, 2006 3:07 am
Location: Lithuania

Post by Aidas » Fri Aug 31, 2007 12:36 am

Buja -- that is beautiful! One of these days, I am going to have to get around to copying that.

Yet another example that this forum is, by far, the best resource on the web.

Aidas
Nisi te iuvat cibus, plus bibe vini!

theholymackerel
retired
Posts: 1431
Joined: Fri Oct 22, 2004 7:39 pm

Post by theholymackerel » Fri Aug 31, 2007 6:00 am

I like the way ya insulated it.

Quite clever.


Look into "batch spargin'"... it might save ya alot of work in yer brewin'.

MikeyT
Swill Maker
Posts: 218
Joined: Sun Mar 04, 2007 2:04 pm

Post by MikeyT » Sat Sep 08, 2007 5:33 pm

So, are you going to ferment in there too? I have always fermented 'on the grain' and then include some of the grain when distilling.

But, right now, straining the mess after fermenting is just that; a MESS!

I only have the one 20 gallon SS pot and I use that for everything, cooking, converting, fermenting, and distilling. I filter between those last two steps.

Uncle Jesse
Site Admin
Posts: 3475
Joined: Wed Apr 21, 2004 3:00 pm

nice

Post by Uncle Jesse » Sat Sep 08, 2007 7:57 pm

sweet setup man, great work
If only the best birds sang, the woods would be silent.

wineo
Distiller
Posts: 1322
Joined: Sat Mar 17, 2007 7:33 pm

Post by wineo » Sat Sep 08, 2007 9:26 pm

Man thats outstanding! You are an artist for sure.I have a brewpot keg with the same braid setup,and drain but I just use it for the boil.My mash tuns are 2 - 5 gallon coolers with false bottoms.I use a 15 gallon cooler for my sparge tank.That sparge shower you made is the best design that I have seen.
wineo

CoopsOz
Distiller
Posts: 1172
Joined: Wed Aug 16, 2006 4:00 am
Location: Didjabringyabongalong

Post by CoopsOz » Sun Sep 09, 2007 12:42 am

Having only ever done cheating sugar wash variants, I'm pretty clueless to the whole mashing/sparging thing. Is it possible to get a tutorial on the use of your brewing vat?
It is most absurdly said, in popular language, of any man, that he is disguised in liquor; for, on the contrary, most men are disguised by sobriety. ~Thomas de Quincy, Confessions of an English Opium-Eater, 1856

Bujapat
Swill Maker
Posts: 430
Joined: Tue Nov 22, 2005 1:36 am
Location: Belgium

Post by Bujapat » Sun Sep 09, 2007 3:47 am

Thanks for your comments...

MickeyT, I don't ferment in this setup... Just brew and strain... And I don't ferment on the grain.

When finished and tested, I'll post a little article about how it works...
I'm french speaking!

Boiler : 50 L (13 gal) beer keg, gas heated.
Reflux : 104 cm (41 inches) column 54 mm (2 inches) diameter withh SS scrubbers packing.
Potstill : 40 cm (15 inches) column 54 mm (2 inches) diameter without packing.

Bujapat
Swill Maker
Posts: 430
Joined: Tue Nov 22, 2005 1:36 am
Location: Belgium

Post by Bujapat » Wed Sep 12, 2007 10:24 am

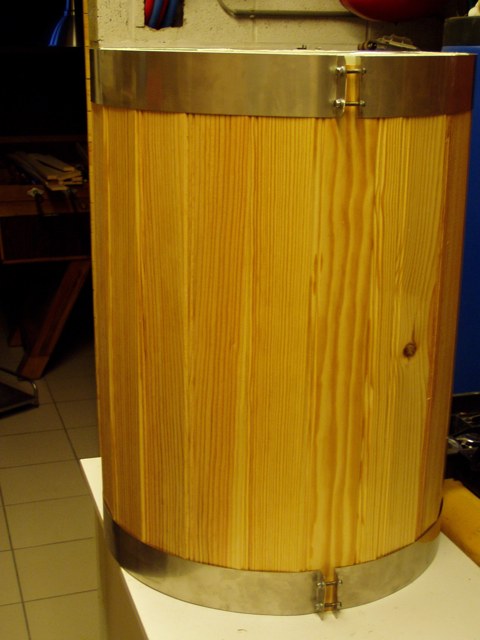

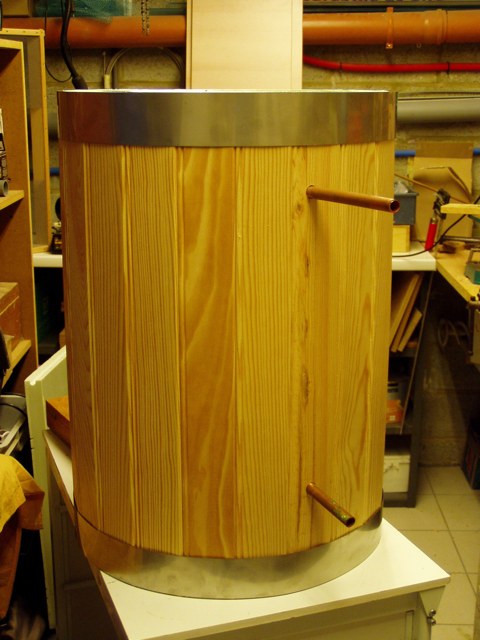

Work is goin' on... I just finished the wood cover on the vat.

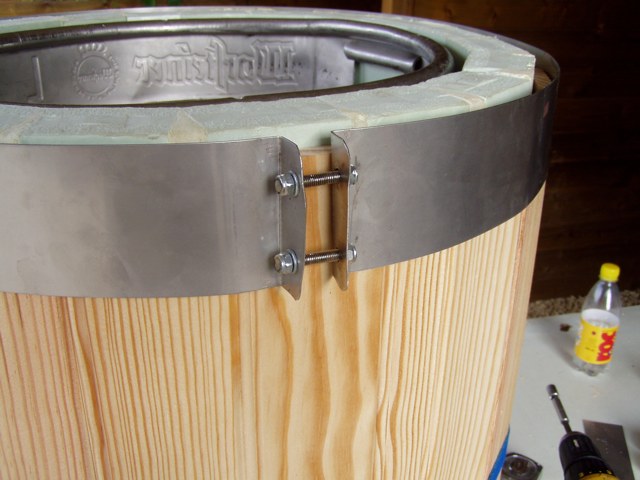

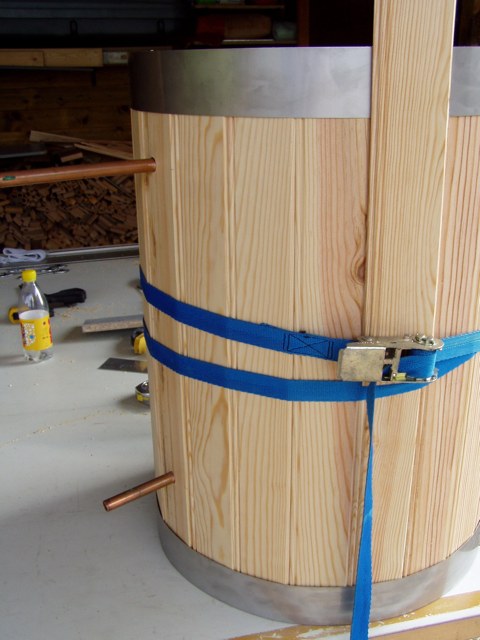

Banding is made of SS steel...
I'm french speaking!

Boiler : 50 L (13 gal) beer keg, gas heated.
Reflux : 104 cm (41 inches) column 54 mm (2 inches) diameter withh SS scrubbers packing.
Potstill : 40 cm (15 inches) column 54 mm (2 inches) diameter without packing.

Uncle Jesse
Site Admin
Posts: 3475
Joined: Wed Apr 21, 2004 3:00 pm

Yep

Post by Uncle Jesse » Wed Sep 12, 2007 11:09 am

What else can I say other than it looks pro?
If only the best birds sang, the woods would be silent.

cannon.co.tn
Swill Maker
Posts: 196
Joined: Fri Jul 20, 2007 3:14 pm

Post by cannon.co.tn » Wed Sep 12, 2007 11:39 am

That looks beautiful.

I would look into brewing beer if I were you. Most folks don't sparge (rinse) grains before fermentation when they are distilling. You give up a lot of potential alcohol when you do. Instead most people just ferment right on top of the mash, it is integral in the flavor of certain alcohols, such as sour mash whiskey.

Bujapat
Swill Maker
Posts: 430
Joined: Tue Nov 22, 2005 1:36 am
Location: Belgium

Post by Bujapat » Wed Sep 12, 2007 12:33 pm

Read on the parent site :
Should you ferment on the grain, or sparge the grains ? Ian Smiley suggests..
If you're doing an all-grain mash of corn, rye, and or wheat, just ferment it all on the grain and strain it out later. It'll strain much more easily and efficiently after the fermentation. In fact, this is exactly what the commercial whiskey distilleries do.

If you're making an all-barley-malt malt mash, you should sparge the grains out after mashing. Again, this is the way the commercial malt whiskey distilleries do it. However, keep in mind that malt mash does not undergo a kettle-boil the way an all-grain beer mash does, so you must limit the amount of sparge water you use or you'll over dilute the mash.
I did this way a few times, but "manually"... This brewing vat will do the same, but much easier...
I'm french speaking!

Boiler : 50 L (13 gal) beer keg, gas heated.
Reflux : 104 cm (41 inches) column 54 mm (2 inches) diameter withh SS scrubbers packing.
Potstill : 40 cm (15 inches) column 54 mm (2 inches) diameter without packing.

Bujapat
Swill Maker
Posts: 430
Joined: Tue Nov 22, 2005 1:36 am
Location: Belgium

Re: Yep

Post by Bujapat » Wed Sep 12, 2007 12:38 pm

Uncle Jesse wrote:What else can I say other than it looks pro?
Thanks Jesse... From you, I take this for a great compliment !
Two years ago, before I find Tony's site and your forum, I never heared anything about brewin', distillin'... nor solderin'... You all learned me averything! Thanks men!
I'm french speaking!

Boiler : 50 L (13 gal) beer keg, gas heated.
Reflux : 104 cm (41 inches) column 54 mm (2 inches) diameter withh SS scrubbers packing.
Potstill : 40 cm (15 inches) column 54 mm (2 inches) diameter without packing.

CoopsOz
Distiller
Posts: 1172
Joined: Wed Aug 16, 2006 4:00 am
Location: Didjabringyabongalong

Post by CoopsOz » Wed Sep 12, 2007 2:09 pm

Nice work Bujapat.
It is most absurdly said, in popular language, of any man, that he is disguised in liquor; for, on the contrary, most men are disguised by sobriety. ~Thomas de Quincy, Confessions of an English Opium-Eater, 1856

wineo
Distiller
Posts: 1322
Joined: Sat Mar 17, 2007 7:33 pm

Post by wineo » Wed Sep 12, 2007 2:32 pm

Bujapat,Man,that thing looks great.I think you have found your calling!
wineo

stoker
Distiller
Posts: 1093
Joined: Fri Dec 02, 2005 9:16 am
Location: not there

Post by stoker » Wed Sep 12, 2007 2:47 pm

I've seen quite a few brew set ups (like HERM's and such) but never one with such a good finishing. You should be very proud of it.

you are a good reason to keep walonie and flanders together :mrgreen:
-I have too much blood in my alcohol system-

Bujapat
Swill Maker
Posts: 430
Joined: Tue Nov 22, 2005 1:36 am
Location: Belgium

Post by Bujapat » Thu Sep 13, 2007 7:35 am

I don't think it's here the best place to talk about belgian politics... But I know a few reasons (other than me) to keep Belgium united... I've a lot of "vlaamse vrienden" and I've more things together with them than with some frenchmen...
Sorry for this "out of topic" message!
I'm french speaking!

Boiler : 50 L (13 gal) beer keg, gas heated.
Reflux : 104 cm (41 inches) column 54 mm (2 inches) diameter withh SS scrubbers packing.
Potstill : 40 cm (15 inches) column 54 mm (2 inches) diameter without packing.

stoker
Distiller
Posts: 1093
Joined: Fri Dec 02, 2005 9:16 am
Location: not there

Post by stoker » Thu Sep 13, 2007 8:07 am

I'm pro-belgium. and i think it would even be better if the country was more united then it is right now.
but you're right, this isn't the place.
-I have too much blood in my alcohol system-

cannon.co.tn
Swill Maker
Posts: 196
Joined: Fri Jul 20, 2007 3:14 pm

Post by cannon.co.tn » Thu Sep 13, 2007 11:28 am

Bujapat wrote:Read on the parent site :
Should you ferment on the grain, or sparge the grains ? Ian Smiley suggests..
If you're doing an all-grain mash of corn, rye, and or wheat, just ferment it all on the grain and strain it out later. It'll strain much more easily and efficiently after the fermentation. In fact, this is exactly what the commercial whiskey distilleries do.

If you're making an all-barley-malt malt mash, you should sparge the grains out after mashing. Again, this is the way the commercial malt whiskey distilleries do it. However, keep in mind that malt mash does not undergo a kettle-boil the way an all-grain beer mash does, so you must limit the amount of sparge water you use or you'll over dilute the mash.
I did this way a few times, but "manually"... This brewing vat will do the same, but much easier...
Interesting, the first half of the quote says to ferment on the grains while the second half says to sparge and runn off the wort before fermentation.

Uncle Jesse
Site Admin
Posts: 3475
Joined: Wed Apr 21, 2004 3:00 pm

ok

Post by Uncle Jesse » Thu Sep 13, 2007 4:34 pm

Really you can do it either way. Traditionally, distillers worts are not sparged. However, this practice is becoming more and more common in the industry.

Some people ferment "grain-in", some don't. Some recipes work better than others for this. There's no really set rules, so experiment until you find whatever makes you happiest.
If only the best birds sang, the woods would be silent.

Bujapat
Swill Maker
Posts: 430
Joined: Tue Nov 22, 2005 1:36 am
Location: Belgium

Post by Bujapat » Wed Sep 19, 2007 4:31 am

The vat and the mixer are finished...

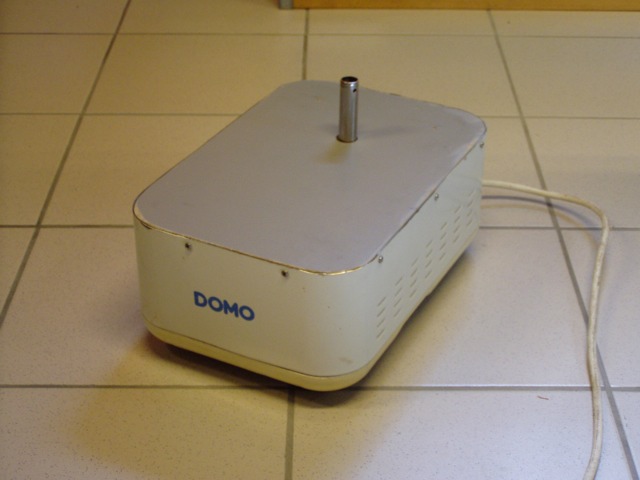

An old bread machine is the base of the mixer

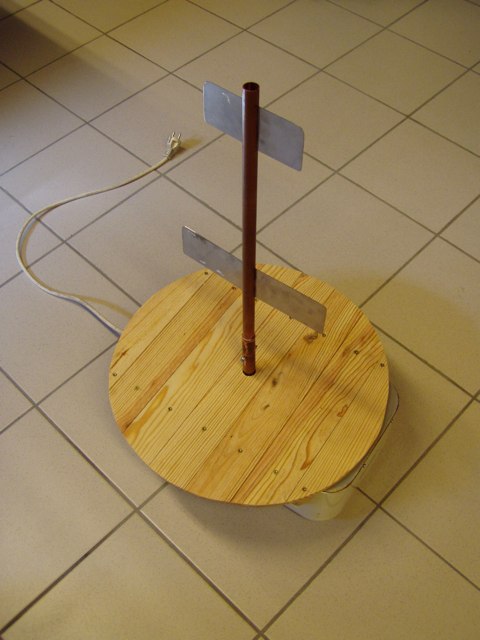

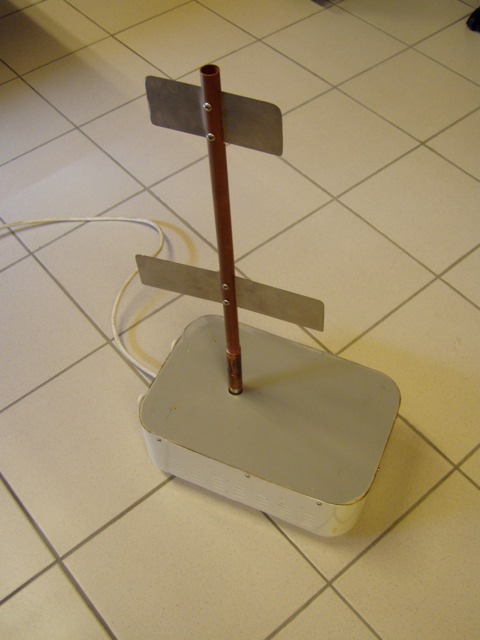

The axis is made of copper tube, the mixer's arms are SS.
Mixer fixed on the vat cover :
Vat top finition :

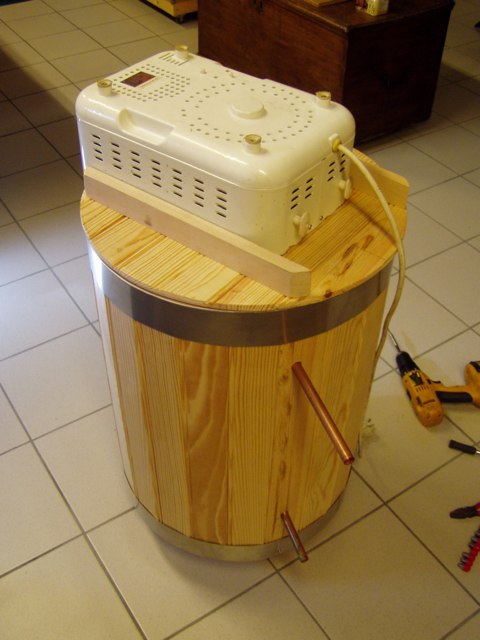

View of the all setup :
Next week-end, I begin the water heater vat : another 50 l keg and a wash machine resistance 2000 + 1000 Watts... It would do the thing!
I'm french speaking!

Boiler : 50 L (13 gal) beer keg, gas heated.
Reflux : 104 cm (41 inches) column 54 mm (2 inches) diameter withh SS scrubbers packing.
Potstill : 40 cm (15 inches) column 54 mm (2 inches) diameter without packing.

stoker
Distiller
Posts: 1093
Joined: Fri Dec 02, 2005 9:16 am
Location: not there

Post by stoker » Wed Sep 19, 2007 4:47 am

:o
-I have too much blood in my alcohol system-

defcon4
Swill Maker
Posts: 237
Joined: Tue Jun 05, 2007 4:09 pm
Location: Blue rock hurtling 'round the Sun

Post by defcon4 » Fri Sep 21, 2007 6:55 pm

Wow, you are a true craftsman! I'm seriously losing sleep fantasizing about copying your work and making one for myself!
Towering in gallant fame,
Scotland my mountain hame,
High may your proud
standard gloriously wave,
Land of my high endeavour,
Land of the shining rivers,
Land of my heart for ever,
Scotland the brave!

Bujapat
Swill Maker
Posts: 430
Joined: Tue Nov 22, 2005 1:36 am
Location: Belgium

Post by Bujapat » Wed Sep 26, 2007 1:35 am

Well, it isn't finished yet, but I don't resist telling you the suite of the building.
So I'm busy with the water boiler, which will be warmed with a wash machine resistance : 1000 + 2000 Watts.

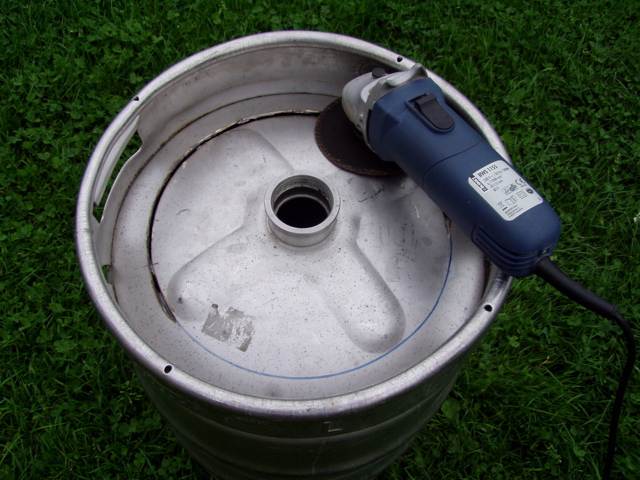

First, make the hole, which has to be precisely fitted to avoid leaks :

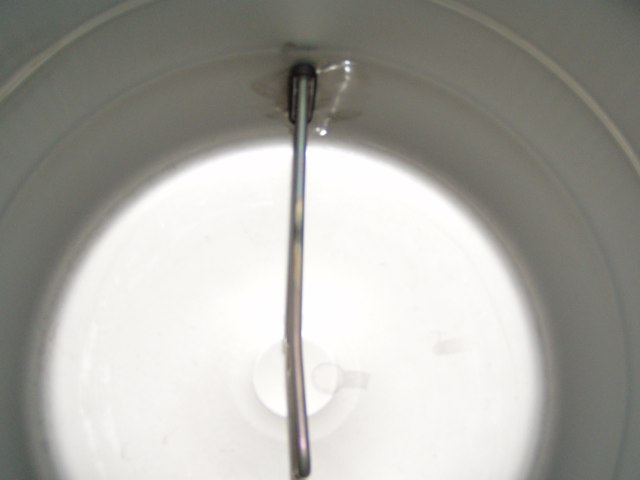

Very easy to put the resistance in place, the rubber joint is crushed (don't know if this is the right term ?) by srewing the nut, and so is the resistance fitted in place, without leak.

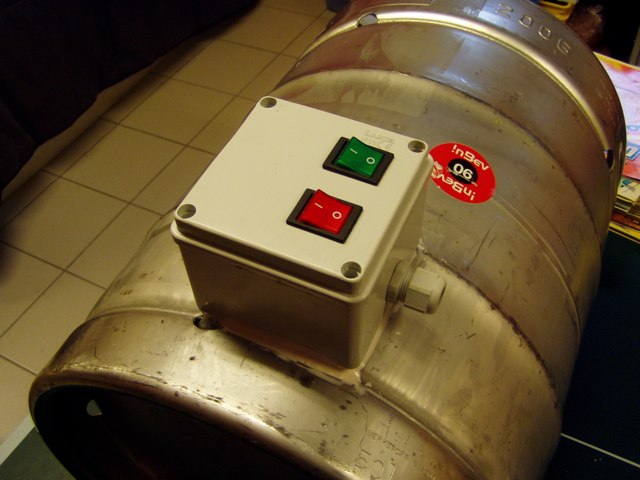

To protect contacts (and my hands...!) I sticked an electrical shunt box (once again, don't know if this is the right term ?) :
Each part of the résistance will be controled by a color lighted switch inserted in the box cover... Later, I'll buy an electronic PID temperature controller, like this :
For now, here's the setup :
Green switch for 1000W, red one for 2000W.

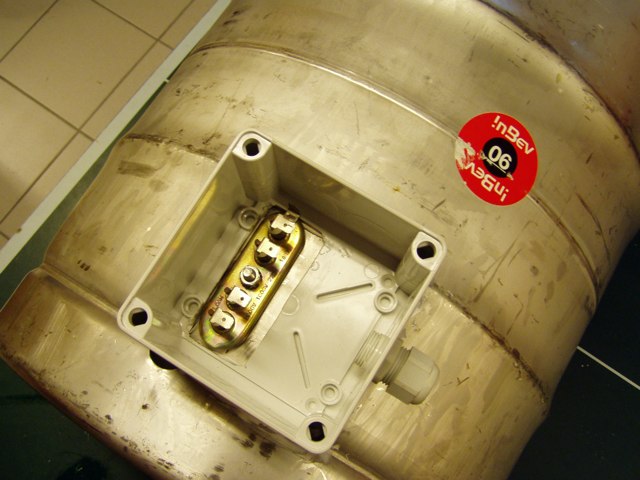

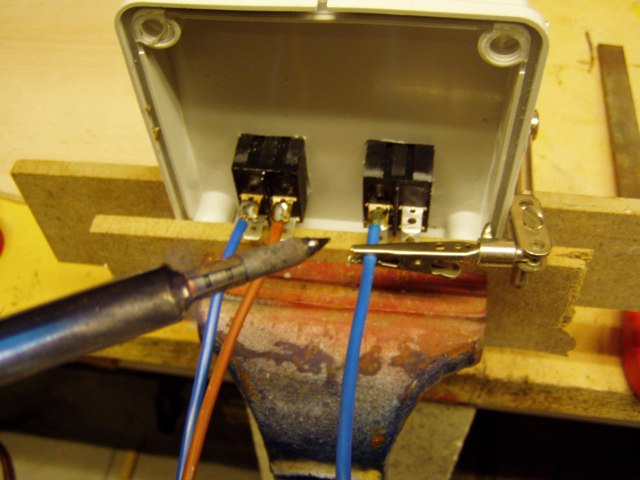

Détail : contacts soldering :
I wish I have 4 hands!!!
I'm french speaking!

Boiler : 50 L (13 gal) beer keg, gas heated.
Reflux : 104 cm (41 inches) column 54 mm (2 inches) diameter withh SS scrubbers packing.
Potstill : 40 cm (15 inches) column 54 mm (2 inches) diameter without packing.

absinthe
Rumrunner
Posts: 534
Joined: Sun Jun 25, 2006 8:29 am
Location: Aussie

Post by absinthe » Wed Sep 26, 2007 4:46 am

nice work!!!... but i would have used crimp-on spade terminals instead of soldering would make any adjustments easier.. LOVE the mash tun though thats just stunning
Whiskey, the most popular of the cold cures that don't work (Leonard Rossiter)

bronzdragon
Site Donor
Site Donor
Posts: 494
Joined: Thu Sep 27, 2007 7:04 am

Post by bronzdragon » Thu Sep 27, 2007 2:12 pm

These craftsmen just do this to make the rest of us drool! hehe

Just kidding. I've been a homebrewer for about 15 years now and that's one of the best mash tuns I've seen made at home for home use.

I may have went with a false bottom instead of the cut pipe as far as catching the runoff ... but it probably doesn't matter much. It may depend on what you intend on mashing mostly.

It looks like a top notch set-up.

~r~

HookLine
retired
Posts: 5628
Joined: Sun May 13, 2007 8:38 am
Location: OzLand

Post by HookLine » Thu Sep 27, 2007 9:03 pm

Very nice work. A high standard for the rest of us to aim for.
Be safe.
Be discreet.
And have fun.

CoopsOz
Distiller
Posts: 1172
Joined: Wed Aug 16, 2006 4:00 am
Location: Didjabringyabongalong

Post by CoopsOz » Thu Sep 27, 2007 11:39 pm

I for one couldn't achieve that level of work!
It is most absurdly said, in popular language, of any man, that he is disguised in liquor; for, on the contrary, most men are disguised by sobriety. ~Thomas de Quincy, Confessions of an English Opium-Eater, 1856

Aidas
Rumrunner
Posts: 577
Joined: Mon Feb 06, 2006 3:07 am
Location: Lithuania

Post by Aidas » Fri Oct 26, 2007 1:11 am

I would buy this setup, as I know I certainly couldn't achieve that sort of craftmanship.

Bujapat, you should put a price on this setup -- I bet I'm not the only one who would come out to Belgium to buy a setup like that. And I'm not kidding.

Aidas
Nisi te iuvat cibus, plus bibe vini!

stoker
Distiller
Posts: 1093
Joined: Fri Dec 02, 2005 9:16 am
Location: not there

Post by stoker » Fri Oct 26, 2007 3:55 am

:o , for you that must be more then 2000 km!
it would be a very expensive mash tun :?
-I have too much blood in my alcohol system-

Post Reply
