Some Still Drawings

Post by HookLine » Wed Dec 15, 2010 5:58 am

These are some still drawings I have done over the years from ideas and designs around the forums and elsewhere. I thought I would throw them all together in one document for others to gawk at. More details in the document.

Sorry about the file size (1.8 MB). But it does contain over 70 images, and you can only compress an image so far before it becomes a fuzzy mess. You only gotta download it once. :P
Still Drawings.pdf.zip
(1.77 MiB) Downloaded 29314 times
Be safe.
Be discreet.
And have fun.

Samohon
Master Distiller
Posts: 3432
Joined: Mon Oct 05, 2009 4:22 am
Location: Somewhere in the UK...

Re: Some Still Drawings

Post by Samohon » Wed Dec 15, 2010 7:14 am

Thanks Hook. I like the vapour lock idea on the LM's also the 45° VM offset head, (always wondered how I could use the 2 x 45° given to me)

Thanks again man... :D
♦♦ Samohon ♦♦

Beginners should visit The New Distillers Reading Lounge and the Safety and Related Issues among others...

HookLine
retired
Posts: 5628
Joined: Sun May 13, 2007 8:38 am
Location: OzLand

Re: Some Still Drawings

Post by HookLine » Wed Dec 15, 2010 7:23 am

8)

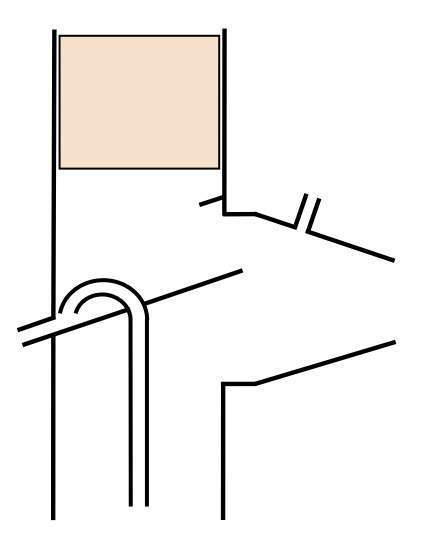

If you mean the internal vapour lock made by just turning the end of the reflux return line up a bit, then that idea came from Harry, IIRC.
Be safe.
Be discreet.
And have fun.

azeo
Site Donor
Site Donor
Posts: 198
Joined: Tue Sep 05, 2006 12:56 am
Location: nr Wgtn, EnZed

Re: Some Still Drawings

Post by azeo » Wed Dec 15, 2010 9:32 pm

Nice! a handy reference Hook, it will be my guidebook when the pencil comes out for the next build idea. Often going through permutations like these at odd moments, and the sketches are never in one place! Thanks for the work! :)

blind drunk
retired
Posts: 4848
Joined: Mon Feb 04, 2008 12:59 am

Re: Some Still Drawings

Post by blind drunk » Wed Dec 15, 2010 9:52 pm

That's great Hook, thanks for sharing your file.

bd
I do all my own stunts

The Baker
Master Distiller
Posts: 3071
Joined: Sun Aug 27, 2006 4:48 am
Location: Northern Victoria, Australia

Re: Some Still Drawings

Post by The Baker » Wed Dec 15, 2010 10:01 pm

Thanks, Hook.
The Baker

HookLine
retired
Posts: 5628
Joined: Sun May 13, 2007 8:38 am
Location: OzLand

Re: Some Still Drawings

Post by HookLine » Wed Dec 15, 2010 11:09 pm

Thanks, folks.

Forgot to give the link to Manback's thread:

Custom VM 'seagull' tee for flow direction
Be safe.
Be discreet.
And have fun.

Joel
Novice
Posts: 15
Joined: Wed Dec 15, 2010 12:10 am
Location: Newcastle

Re: Some Still Drawings

Post by Joel » Mon Dec 20, 2010 7:13 pm

Thanks Hook,

They are some very informative drawings. Just what a newbie like myself needs.

Cheers.
If God had meant us to drink beer, He would have given us stomaches.

Oxbo Rene
Site Donor
Site Donor
Posts: 468
Joined: Wed Jun 16, 2010 5:26 am

Re: Some Still Drawings

Post by Oxbo Rene » Tue Dec 21, 2010 10:52 am

Drawings appreciated,
however, you put a "LOT" of emphases on vapor locks, are you sure that the vapor lock theory is that significant in these applications ?
And, if you believe this to be so, please convince me .........
It is not the matter, nor, the space between the matter,
but rather, it is that finite point at which the two meet,
that, and only that, is what is significant...........
(Of course, I could be wrong) ..........

Oxbo Rene
Site Donor
Site Donor
Posts: 468
Joined: Wed Jun 16, 2010 5:26 am

Re: Some Still Drawings

Post by Oxbo Rene » Fri Dec 24, 2010 6:13 am

I will add this,
When I came here and studied to build one of these things, I don't recall seeing anyone having a vapor lock on their designs.
and, consequently I didn't incorporate one on mine, and, even though I do see a minor amount of vapor escaping from my take-off
tube from time to time, I've read and agree that it's miniscule and not a great sacrifice to the whole of the operation.
I'll be the first to admit I don't know jack about this stuff, but I pick up a little bit every now and then.
Siting here thinking, I would suppose that the addition of the vapor lock practice could possibly be due to the continued evolutionary
manner of this forum and it's members always striving to adapt to the better method as we go along, etc, etc.....
I sure don't mean to challenge nor piss off anyone, just lookin for answers .......
I'm done .........
It is not the matter, nor, the space between the matter,
but rather, it is that finite point at which the two meet,
that, and only that, is what is significant...........
(Of course, I could be wrong) ..........

Popcorn Fan
Swill Maker
Posts: 221
Joined: Mon Oct 18, 2010 1:46 am
Location: Australian

Re: Some Still Drawings

Post by Popcorn Fan » Sun Jan 02, 2011 1:30 pm

Hey Oxbo,

I thought the same thing about the vapour locks, I have never had any problems with loosing vapour (that said I have only built three stills so far)

I suppose another thing it depends on is the length of the takeoff tube, I use 6 mm stainless then have a pice of 3/8 copper that slips straight over the top of it that can be taken off for storage. If your takeoff tube is only say 8 inches you might have to use a vapour lock.

I'ld say it's probably in my opinion one of those things that are a nice to have, probably not 100% a must have but if you do have it on there good stuff. An alternative to a vapour lock would be to extend your takeoff tube and always have it pionting directly down as far as possible.
Vapour is always going to want to go up.

Thoughts?

Oxbo Rene
Site Donor
Site Donor
Posts: 468
Joined: Wed Jun 16, 2010 5:26 am

Re: Some Still Drawings

Post by Oxbo Rene » Sun Jan 02, 2011 4:02 pm

Appreciate the reply/input.
I don't know,
all I do know is that I'm pleased with mine the way it is and "I ain't changin" !!!!!!!
It is not the matter, nor, the space between the matter,
but rather, it is that finite point at which the two meet,
that, and only that, is what is significant...........
(Of course, I could be wrong) ..........

Popcorn Fan
Swill Maker
Posts: 221
Joined: Mon Oct 18, 2010 1:46 am
Location: Australian

Re: Some Still Drawings

Post by Popcorn Fan » Sun Jan 02, 2011 4:41 pm

If it works don't mess with it as I always say :)

User avatar
acfixer69
Global moderator
Posts: 3338
Joined: Mon Dec 20, 2010 3:34 pm
Location: CT USA

Re: Some Still Drawings

Post by acfixer69 » Fri Jan 14, 2011 9:24 am

Thank you Hook
:D :D :D
This is a fantastic collection of still designs. Having the sketches all on one file makes a newbe like myself able to make comparison and then the best decisions to suit skills and needs.
Again thanks for all your time and sharing.
Acfixer69 :ebiggrin:

HookLine
retired
Posts: 5628
Joined: Sun May 13, 2007 8:38 am
Location: OzLand

Re: Some Still Drawings

Post by HookLine » Wed Mar 16, 2011 5:27 pm

Howdy folks, been real busy lately, and have not had time to even log in since Xmas. Gonna be that way for a while for me.

But got a little bit of time for now to catch up with stuff.

••••••••••••••••••••••••••••••
Oxbo Rene wrote:Drawings appreciated,
however, you put a "LOT" of emphases on vapor locks, are you sure that the vapor lock theory is that significant in these applications ?
And, if you believe this to be so, please convince me .........
Internal vapour locks are not strictly necessary, worst case scenario there is probably a small loss of efficiency.

External vapour locks (ie on the liquid take-off line) are very necessary, IMHO. You do not want vapour escaping to the outside of the still under any circumstances (except an emergency pressure relief valve going off).

••••••••••••••••••••••••••••••

Correction to one of the drawings.

The second of the drawings I did about the liquid levels in the liquid paths is not correct (though there is no safety issue). In that drawing I have both versions of vapour locks for the reflux return path, the external and internal version, when you only need one of those (either will do). I was going to split that drawing into two versions, but forgot and ran out of time. Will re-do it shortly and post the new drawings here.
Be safe.
Be discreet.
And have fun.

HookLine
retired
Posts: 5628
Joined: Sun May 13, 2007 8:38 am
Location: OzLand

Re: Some Still Drawings

Post by HookLine » Fri May 20, 2011 10:56 pm

Updated liquid level drawings.

Drawings used a Bokabob slanted-plate liquid management design to demonstrate the basic principle, but it is the same on other designs (invert cup LM, VM, etc).

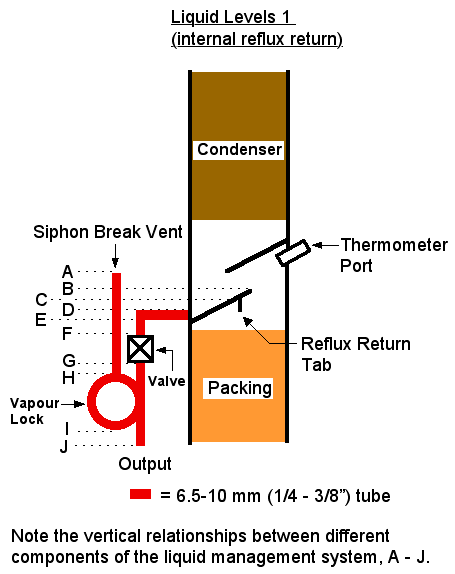

Liquid Levels 1.gif

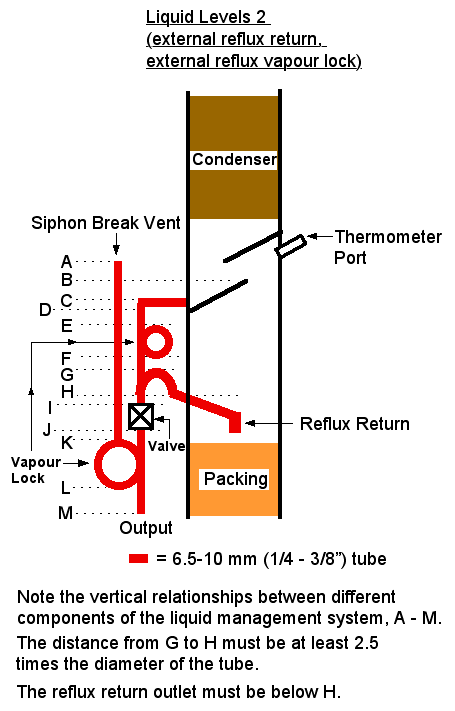

Liquid Levels 2.gif

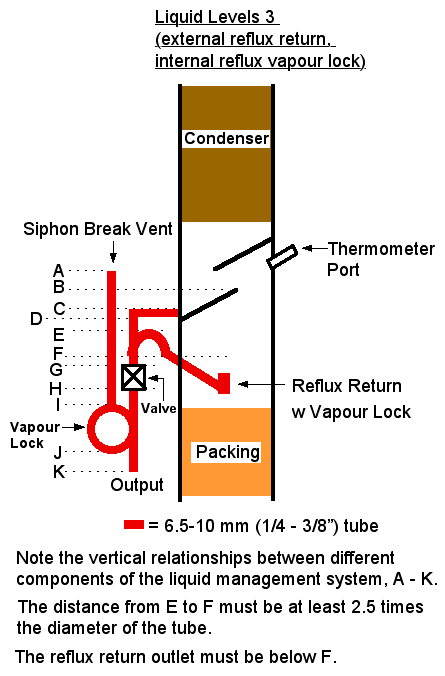

Liquid Levels 3.gif
Be safe.
Be discreet.
And have fun.

User avatar
Bushman
Global moderator
Posts: 15043
Joined: Tue Mar 30, 2010 5:29 am
Location: Pacific Northwest

Re: Some Still Drawings

Post by Bushman » Sat May 21, 2011 4:55 am

Hookline, I noticed on your examples that the valve on the takeoff is in the vertical rather than the horizontal position. I see most designs have it on the horizontal. Mine is also on the vertical part as well, mainly because that is the size valve I had and my take off starts too large for the valve. I do however have it toward the top of the takeoff as it reduces just after the 90 degree bend. In comparison to output in my reading I haven't noticed a difference from what others are getting. I do let it reflux for 45 min to an hour before I open the valve.

HookLine
retired
Posts: 5628
Joined: Sun May 13, 2007 8:38 am
Location: OzLand

Re: Some Still Drawings

Post by HookLine » Sat May 21, 2011 5:19 am

Should not make any difference as far as I can see. It is just easier to draw that way. Remember, these are only schematic drawings of the basic principle, not detailed engineering drawings.
Be safe.
Be discreet.
And have fun.

HookLine
retired
Posts: 5628
Joined: Sun May 13, 2007 8:38 am
Location: OzLand

Re: Some Still Drawings

Post by HookLine » Sun May 22, 2011 1:24 am

Er, let me try that again. Trying to do too many things at once today.

By horizontal valve do you mean this?

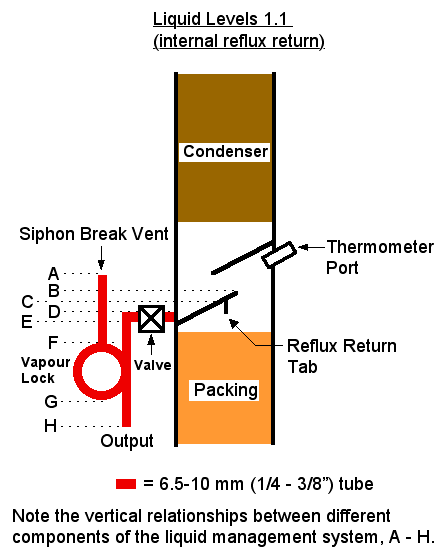

Liquid Levels 1.1.gif
In this still design the valve can be anywhere between the take-off port on the column and the vapour lock. But horizontal is a cleaner way to draw it. Thanks for pointing it out.

In the other two drawings (Liquid Levels 2 & 3), the valve has to be below the 'hump' in the reflux return line.
Last edited by HookLine on Sun May 22, 2011 7:21 am, edited 1 time in total.
Be safe.
Be discreet.
And have fun.

User avatar
Bushman
Global moderator
Posts: 15043
Joined: Tue Mar 30, 2010 5:29 am
Location: Pacific Northwest

Re: Some Still Drawings

Post by Bushman » Sun May 22, 2011 4:42 am

HookLine wrote:Er, let me try that again. Trying to do too many things at once today.

By horizontal valve do you mean this?
Yes, that was what I was refering too!

frozenthunderbolt
Distiller
Posts: 1417
Joined: Tue Apr 19, 2011 3:01 am
Location: North island of New Zealand

Re: Some Still Drawings

Post by frozenthunderbolt » Mon May 23, 2011 6:18 pm

Fantastic thanks Hook! :thumbup:
Where has all the rum gone? . . .

Every new member should read this before doing anything else:

HookLine
retired
Posts: 5628
Joined: Sun May 13, 2007 8:38 am
Location: OzLand

Re: Some Still Drawings

Post by HookLine » Fri May 27, 2011 3:12 am

Thanks. 8)

Cheers
Be safe.
Be discreet.
And have fun.

HookLine
retired
Posts: 5628
Joined: Sun May 13, 2007 8:38 am
Location: OzLand

Re: Some Still Drawings

Post by HookLine » Fri Jan 13, 2012 3:09 pm

Also see this post for another variation of a combined slanted plate LM - VM.

http://homedistiller.org/forum/viewtopi ... 6#p6950596
Be safe.
Be discreet.
And have fun.

HookLine
retired
Posts: 5628
Joined: Sun May 13, 2007 8:38 am
Location: OzLand

Re: Some Still Drawings

Post by HookLine » Mon Feb 06, 2012 1:06 am

More drawings of the VM-LM slanted plate head.
VM-LM Head.jpg
VM-LM Head - Detail.jpg
Be safe.
Be discreet.
And have fun.

Samohon
Master Distiller
Posts: 3432
Joined: Mon Oct 05, 2009 4:22 am
Location: Somewhere in the UK...

Re: Some Still Drawings

Post by Samohon » Mon Feb 06, 2012 2:56 am

These are great Hook, wish I'd seen them before putting the LM above the VM branch. A lot easier to fabricate as well...

Thanks again man... :thumbup:
♦♦ Samohon ♦♦

Beginners should visit The New Distillers Reading Lounge and the Safety and Related Issues among others...

HookLine
retired
Posts: 5628
Joined: Sun May 13, 2007 8:38 am
Location: OzLand

Re: Some Still Drawings

Post by HookLine » Mon Feb 06, 2012 3:52 am

I apologise for my tardiness. :twisted:



Thanks, buddy.

Probably the main plus of this design variation is the obvious one, that it substantially reduces the total height needed for the slanted plate LM-VM head.

Also, it pushes vapour toward the vapour valve, and you can use an internal reflux return tube (it can be soldered/brazed into the main plate, via the vapour take-off port, before the reducer is attached).

The curved section at the top of the reflux return tube functions as a vapour lock (not strictly necessary on internal reflux return lines), and it also prevents falling condensate from dropping straight back down the tube.

Cheers
Hook
Be safe.
Be discreet.
And have fun.

Bubba Q
Bootlegger
Posts: 141
Joined: Sat Oct 01, 2011 1:42 pm

Re: Some Still Drawings

Post by Bubba Q » Sat Apr 28, 2012 9:51 am

In the drawings just below the VM area, you show 2 variations of connecting the pipe with a coupler. One method shows it correct to solder at the bottom of the couple and seal the top with flour paste or ptfe while the other shows it incorrect to solder the top. Why is that? I figure it would be a better seal to solder the top and ptfe tape the bottom no?

Prairiepiss
Master Distiller
Posts: 16355
Joined: Sat Dec 18, 2010 7:42 am
Location: Heatland Prairie USA

Re: Some Still Drawings

Post by Prairiepiss » Sat Apr 28, 2012 10:52 am

Liquid as in reflux will be falling or running down the walls of the still. So you want the permanent solder joint on the bottom. And the sealed slip joint at the top. This way the liquid will never run out. Even with a bad seal. It will act like a funnel and keep it all within the column.
It'snotsocoldnow.

Advice For newbies by a newbie.
CM Still Mods
My Stuffs
Fu Man

Mr. Piss
That's Princess Piss to the haters.

Bubba Q
Bootlegger
Posts: 141
Joined: Sat Oct 01, 2011 1:42 pm

Re: Some Still Drawings

Post by Bubba Q » Sun Apr 29, 2012 7:55 am

I'll buy that. I've seen it both ways on this site and I guess I liked the idea of soldering at the top as it would appear to be a better seal (and easier/cleaner than flour paste) limiting the escape of vapor. Never thought that having the lower joint tight with ptfe could aversly effect reflux but it makes sense that it could leak out there. Thanks PP!

HookLine
retired
Posts: 5628
Joined: Sun May 13, 2007 8:38 am
Location: OzLand

Re: Some Still Drawings

Post by HookLine » Wed Nov 14, 2012 4:41 am

Updated drawing of the LM-VM head.
LM-VM Head.pdf
(71.62 KiB) Downloaded 1378 times
