My apartment still boiler evolution

Post by diode663 » Tue Jan 06, 2015 12:01 pm

Hey everyone,

I started this hobby a little less then a year ago and initially started a thread but failed on the pictures and got busy so lets do it again.

The boiler is a 1/6 barrel keg that I modified for my purposes. It started off unmodified and heated by my stove. With that setup it took about 2 hours to come to temp. This was longer then i had wanted so I decided to go electric bringing my time down to just under a hour with a 120 volt 2000 watt element. I am in a 900 square foot apartment so power and space are limited.

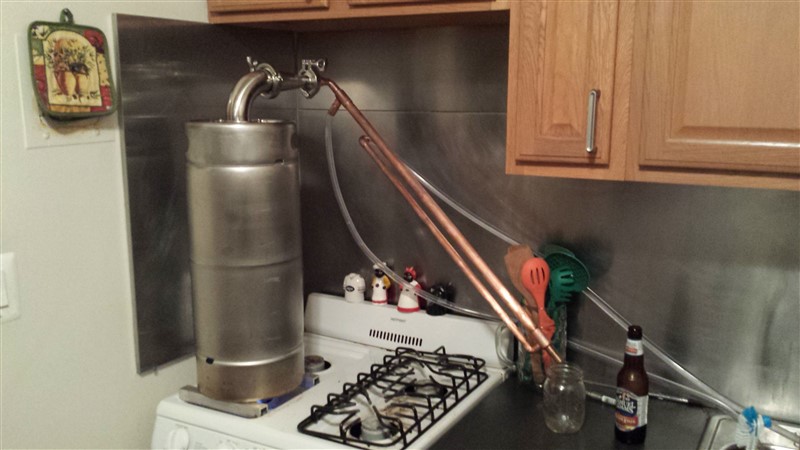

Original stove fired setup
Original stove fired setup

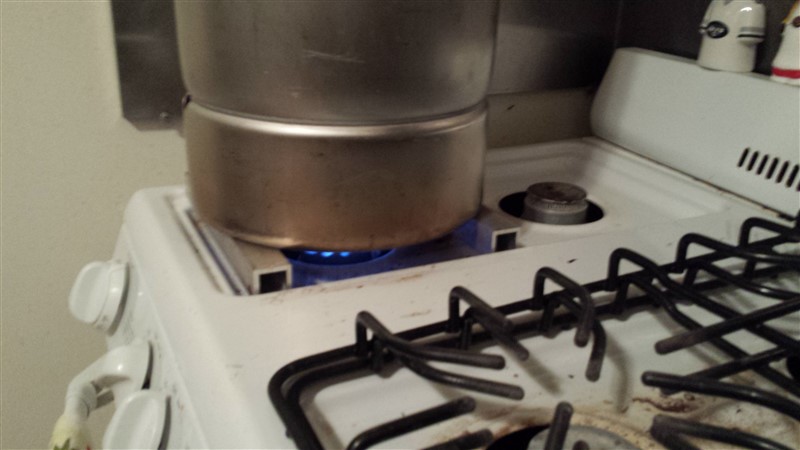

Spacers
Spacers
Above is the original stove fired setup which took forever to heat.

And below we have the modification phase.
Welding Setup
Welding Setup
Warning: You must be single or have an awesome wife for this setup. Luckily I have a very understanding spouse.
The welder is a Miller Dynasty 200DX. Settings: 90 Amps, 100 Pulses per Second, 30% background amps, 40% on time. Note the second cylinder for purging.

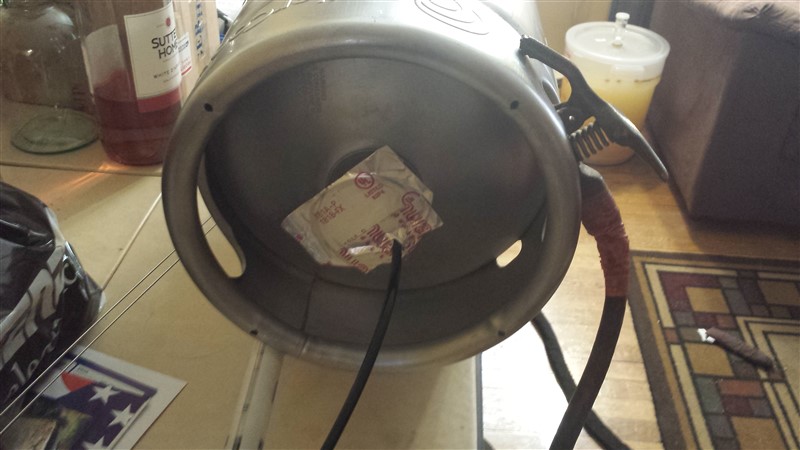

Purge Line
Purge Line
I purged at 20 CFH for 30 minutes then backed down to 3 CFH while welding. This allowed me to weld the fittings with no sugaring and only a light straw color in some spots where I camped out for too long on the inside.

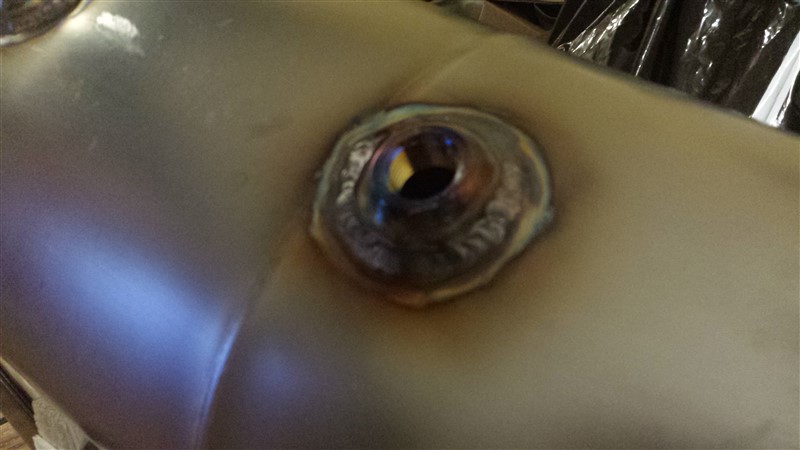

1/2" NPT weld spud.
1/2" NPT weld spud.

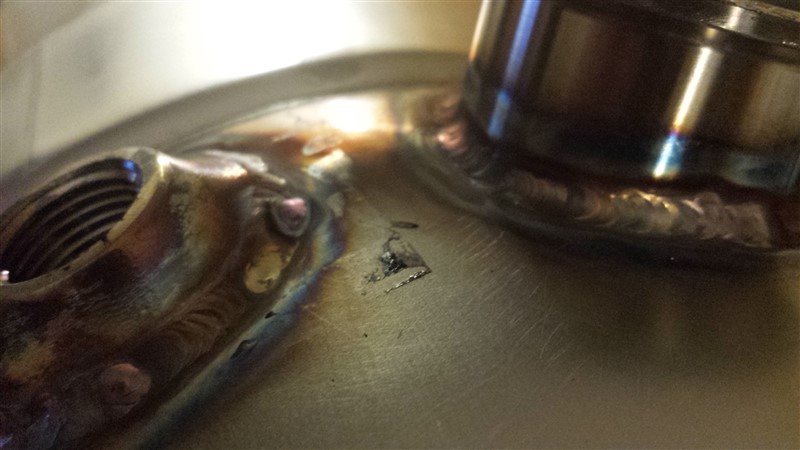

Another 1/2" NPT Spud and 2" Tri-clamp ferrule.
Another 1/2" NPT Spud and 2" Tri-clamp ferrule.
Note that if i had to do it again I would have cut the sanke fitting out and put a 4" fitting so I could get in there. I also didn't really like the weld spuds, at least on this diameter keg. There was some large gaps because it didn't fit the contour of the keg. I would suggest half couplings with a flare tool and that 4 inch opening for the tri-clamp would make it possible.

diode663
Novice
Posts: 28
Joined: Sat Feb 01, 2014 11:07 pm
Location: Northern Jersey

Re: My apartment still boiler evolution

Post by diode663 » Tue Jan 06, 2015 12:09 pm

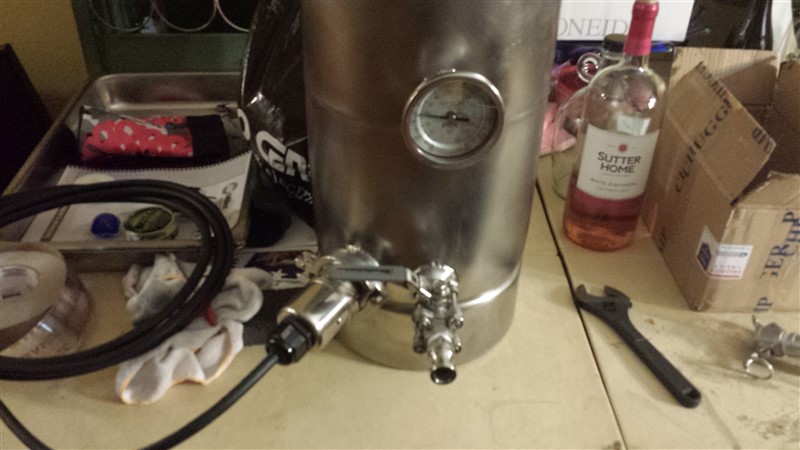

The almost finished product
The almost finished product
Please ignore my wife's wine. As stated before the element is a 120 volt 2000 watt hot water element. I will make another post for the controller build. I know the thermometer is looked down upon around here but it is nice to know when i can expect to start boiling. There is a 1/2" stainless 3 piece ball valve with a camlock fitting on it so I can easily get backset out at the end of the run. The element cover is from brewhardware and is a real nice piece of kit.

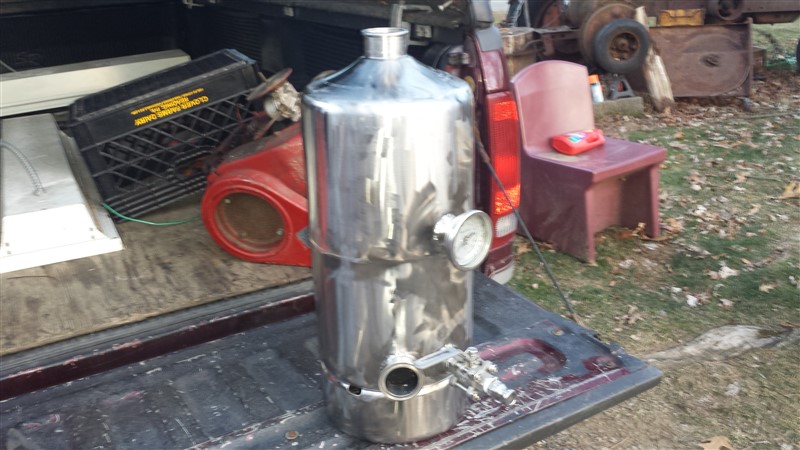

This is it.  I think.
This is it. I think.
Hopefully the final revision. I plasma cut the ring off the top because it interfered with getting the triclamp on. I used a 4.5" 2SF Norton Rapid finish wheel to get that finish. I don't think I will do a full mirror polish, I haven't decided yet.

Thanks for looking and I appreciate any input.

bellybuster
Master Distiller
Posts: 4490
Joined: Tue Dec 18, 2012 5:00 pm

Re: My apartment still boiler evolution

Post by bellybuster » Tue Jan 06, 2015 12:26 pm

you gonna love electric....

User avatar
still_stirrin
Master Distiller
Posts: 8208
Joined: Tue Mar 18, 2014 7:01 am
Location: where the buffalo roam, and the deer & antelope play

Re: My apartment still boiler evolution

Post by still_stirrin » Tue Jan 06, 2015 1:00 pm

Great project diode. Looks great.

Do you have column plans in the forecast? I bet your wife would love some quality neutral too.

ss
Attention new distillers: Cranky's spoon feed info
My LM/VM & Potstill: My build thread
My Cadco hotplate modification thread: Hotplate Build
My stock pot gin still: stock pot potstill
My 5-grain Bourbon recipe: Special K

User avatar
CR33G3R
Swill Maker
Posts: 333
Joined: Mon Oct 01, 2012 5:29 pm
Location: The Buckeye State

Re: My apartment still boiler evolution

Post by CR33G3R » Tue Jan 06, 2015 4:43 pm

Very slick..
Still learnin...
MY CCVM

User avatar
shadylane
Site Donor
Site Donor
Posts: 7232
Joined: Sat Oct 27, 2007 11:54 pm
Location: Hiding In the Boiler room of the Insane asylum

Re: My apartment still boiler evolution

Post by shadylane » Tue Jan 06, 2015 4:54 pm

Looking good.
Just a thought weld spuds can be ground on till they fit the contour of the keg.

diode663
Novice
Posts: 28
Joined: Sat Feb 01, 2014 11:07 pm
Location: Northern Jersey

Re: My apartment still boiler evolution

Post by diode663 » Wed Jan 07, 2015 4:40 pm

Thank you for all the comments. I really appreciate it.

Bellybuster- I have run it on electric a few times now and you're absolutely right, I love it. From fermenter to first drips takes just about an hour. Previously it took two hours to come to temp.

Still_stirin- Thank you, I have no plans at this time for a column build. I just don't have the space to use or build it. I have actually been pretty happy with the pot still design and my wife takes the liquor and puts fruit in it to make all sorts of delicious stuff to hold us over at the moment. My next step is to try an all grain ferment and get started on the ultimate reason I built this thing, bourbon.

Shadylane- I originally was going to grind the spuds to match the contour. Unfortunately I would lose the locating boss on the back of the spud and that to me seemed to defeat the purpose of the spud. What I ended up doing was taking a 5 lb sledge to the wall to try to make it flat in that area. It somewhat worked but the small diameter (9" ) was really too stiff to flatten out in a controlled manner. I am sure they work a lot better on something with a larger diameter. The other problem was that I couldn't find my tube of 3/32 308LSI filler which would have made the gap a lot more manageable. I used 1/16th for the whole project and it worked great everywhere except the spuds.

User avatar
firewater69
Site Donor
Site Donor
Posts: 1332
Joined: Tue Feb 04, 2014 9:55 am

Re: My apartment still boiler evolution

Post by firewater69 » Wed Jan 07, 2015 5:21 pm

Great job Diode!!!
Moonshine.... American as apple pie & it's part of our heritage, history & culture.

User avatar
Ghostpepperman
Novice
Posts: 76
Joined: Tue Feb 18, 2014 10:42 am
Location: Washington Wheat Fields

Re: My apartment still boiler evolution

Post by Ghostpepperman » Wed Jan 07, 2015 9:27 pm

Sweet boiler dude...You must have a awesome spouse :-)
Ghostpepperman

diode663
Novice
Posts: 28
Joined: Sat Feb 01, 2014 11:07 pm
Location: Northern Jersey

Re: My apartment still boiler evolution

Post by diode663 » Thu Jan 08, 2015 5:54 pm

Thanks guys. Shes pretty awesome. She was actually watching tv behind me while i was welding everything up.

dan_buddy
Bootlegger
Posts: 126
Joined: Wed Aug 13, 2014 9:48 am

Re: My apartment still boiler evolution

Post by dan_buddy » Sun Mar 22, 2015 1:05 pm

Awesome still man
Gonna try and get me a 30 liter tall keg and try something like this
I use a 50 now it's a bit big
Alcohol cant help your problems , but nether does water.

NcGunny
Bootlegger
Posts: 115
Joined: Sat Feb 08, 2014 11:37 am

Re: My apartment still boiler evolution

Post by NcGunny » Wed Apr 15, 2015 12:11 pm

She let you weld right inside the house?!! Thats definately a keeper there.I am still gathering parts for my first "electric build".
Is your life worth.."Better fix that next time"????

User avatar
ranger_ric
Site Donor
Site Donor
Posts: 1277
Joined: Thu Feb 12, 2015 5:24 pm
Location: West Of Eden

Re: My apartment still boiler evolution

Post by ranger_ric » Wed Apr 15, 2015 4:12 pm

Sweet Build !!
If you are not willing to learn
No One Can Help You...
If you are Determined to Learn
No One can STOP you!!
We want you to be safe and succeed so start here

User avatar
jedneck
Site Donor
Site Donor
Posts: 3712
Joined: Thu Jan 10, 2013 5:16 pm
Location: drive to the sticks, hang a right past the sticks amd go a couple more miles.

Re: My apartment still boiler evolution

Post by jedneck » Wed Apr 15, 2015 4:25 pm

You mite be a shiner if your other half lets you weld your boiler in the house.
welcome aboard some of us are ornery old coots but if you do a lot of
reading and don't ask stupid questions you'll be alright most are
big help
Dunder

dan_buddy
Bootlegger
Posts: 126
Joined: Wed Aug 13, 2014 9:48 am

Re: My apartment still boiler evolution

Post by dan_buddy » Tue May 12, 2015 5:43 pm

Hey before you did your swap from propane did you did that the propane fumes were alot for you apartment ?
