These are the original sketches of [[still]]s and [[column]]s done by Bokabob. Whether these are built or not, any distiller should study and understand these.
Many thanks to Alex (email : bokakob@yahoo.com ) for providing these excellent drawings
[[Image:Drawing_01_simple_updraft_SU.jpg|thumb|400px|center|Bokabob Simple Updraft Detail]]
[[Image:Drawing_01_simple_updraft_SU.jpg|thumb|400px|center|Bokabob Simple Updraft Detail]]


Line 32: Line 37:


[[Image:Drawing_17_air_cooled_AC.jpg|thumb|400px|center|Bokabob Air Cooled Detail]]
[[Image:Drawing_17_air_cooled_AC.jpg|thumb|400px|center|Bokabob Air Cooled Detail]]
[[Category:How-To]]
[[Category:Equipment]]
[[Category:Glossary]]

Revision as of 22:46, 8 September 2017

These are the original sketches of stills and columns done by Bokabob. Whether these are built or not, any distiller should study and understand these.

Many thanks to Alex (email : bokakob@yahoo.com ) for providing these excellent drawings


Bokabob Simple Updraft Detail
Bokabob Simple Downpour Detail

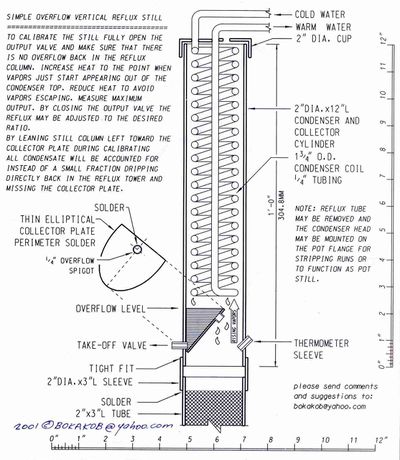

Bokabob Elliprical Inline Detail

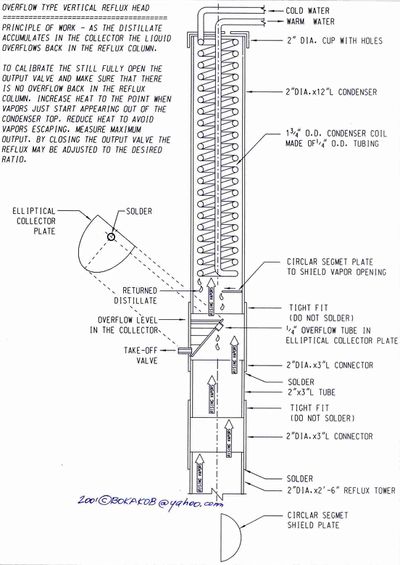

Bokabob Elliptical Inline Detail

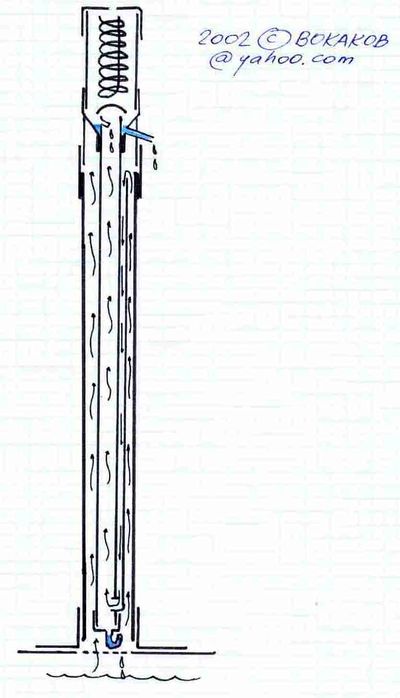

Bokabob Prototype AutoStill Detail
Bokabob Two Stage Detail

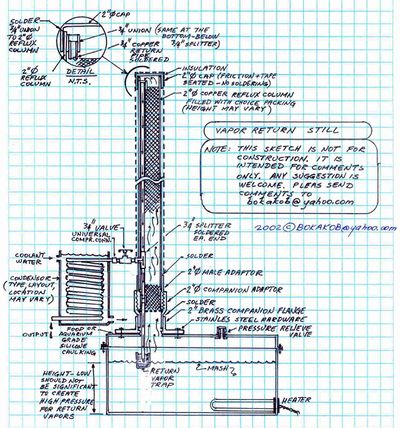

Bokabob Vapor Return Still Detail
Bokabob Single Reducer Detail
Bokabob Double Reducer Detail
Bokabob Overflow Reflux Tower Detail
Bokabob Single Reducer Still Detail
Bokabob Two Cups Column Detail
Bokabob Two Cups Column Detail

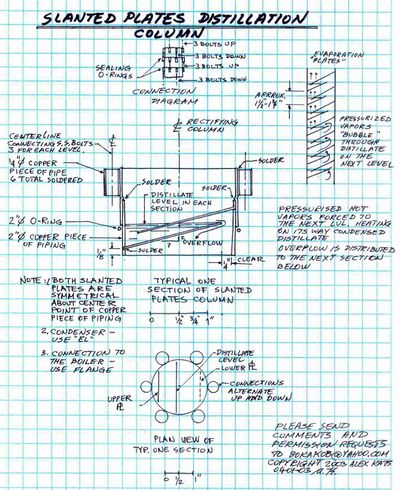

Bokabob Slanted Plates Column Detail

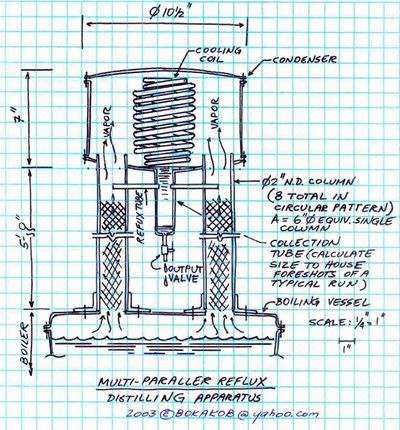

Bokabob Small Scale Multi Parallel Detail

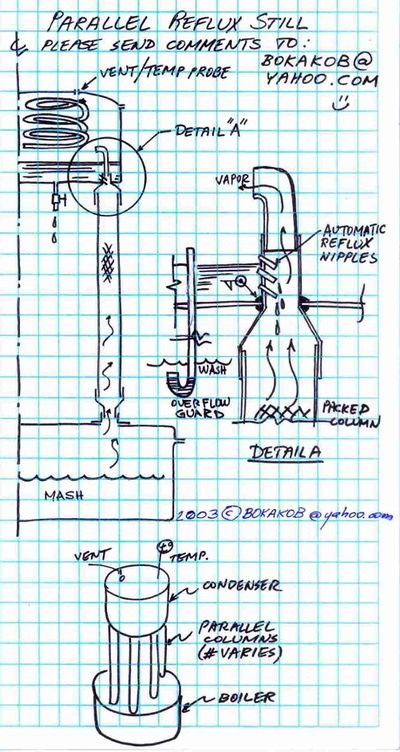

Bokabob Small Scale Parallel Reflux Still Detail

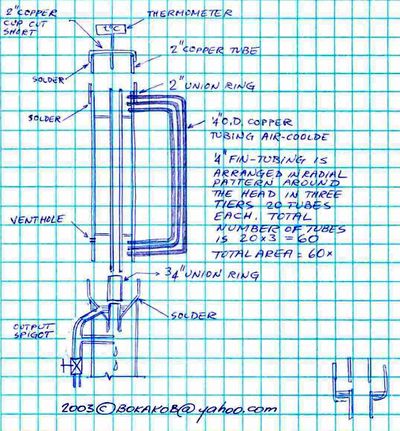

Bokabob Air Cooled Detail
