Setsumi's Flute

Post by Setsumi » Fri Nov 09, 2018 11:38 pm

Well it all started when I found a 300mm length of 100mm (4'') copper pipe in a pawn shop. over the next few months I collected various spun copper plates from different pawn shops. The problem was the length of the copper pipe and time. Then I found a 340mm length of stainless steel pipe with close the same inside diameter of the copper pipe. And in October I had 2 weeks of Sundays and access to my brothers workshop...

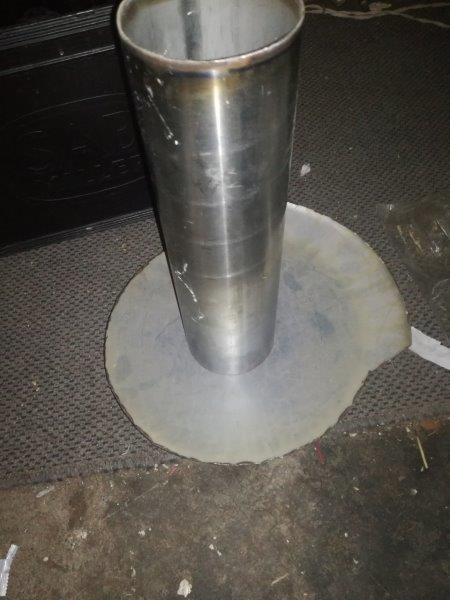

First pic the ss pipe on a beer keg top that I scored from a brewer. The pipe was welded to the keg top. After welding the excess was trimmed an cleaned. Maybe I will try to copper plate it one day.
ss pipe on beer keg top
ss pipe on beer keg top

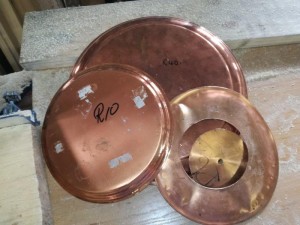

Then I started on the plates, first plate was cit with a bi metal hole saw.
plates
plates
Then we realised there should be an easier way. A metal snip.
snips
snips

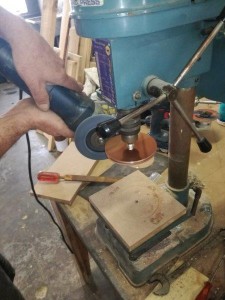

Stack the plates and form with grinder an flap disc. The forming is easier not in the drill press.
forming the plates
forming the plates

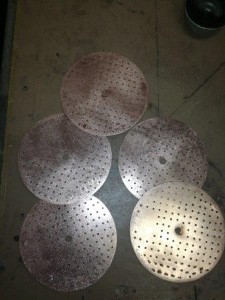

Then I decided to do perf plates. All discussions read suggested holes of around 1.6mm. There is no way I could see a 1.6mm drill bit in the press, that bit is needle thin. So I opted for 2mm holes on around a 6mm grid pattern. I have stacked the plates punched the top and drilled all 142 holes through all 5 plates in just more than an hour. Broke 4 bits. The open area works out to 5.6%.
perfs
perfs
Plates drilled - will get 22mm (3/4") downcommers 22mm above plates.
plates drilled
plates drilled
Will finish the rest of the pics later.
press https://homedistiller.org/forum/viewtopic.php?t=79008
twins viewtopic.php?f=50&t=80886
My wife tells me I fell from heaven covered in white. Why did they let me fall?

User avatar
Yummyrum
Global moderator
Posts: 3257
Joined: Sat Jul 06, 2013 2:23 am
Location: Mid North Coast Aussie

Re: Setsumi's Flute

Post by Yummyrum » Sat Nov 10, 2018 1:22 am

Setsumi wrote:Well it all started when I found a 300mm length of 100mm (4'') copper pipe in a pawn shop. over the next few months I collected various spun copper plates from different pawn shops..
Ha ....easy how we get sucked in with a wee bit to start us off :D ....LOL got me that way too
Setsumi wrote: Then we realised there should be an easier way. A metal snip.
Love that :thumbup: ....nice :D

Keep up the good work

User avatar
fizzix
Site Donor
Site Donor
Posts: 3696
Joined: Tue Dec 05, 2017 4:08 pm

Re: Setsumi's Flute

Post by fizzix » Sat Nov 10, 2018 5:41 pm

True craftmanship leaves me in awe. Excellent work.

Samyguy
Bootlegger
Posts: 130
Joined: Tue Nov 28, 2017 5:40 pm

Re: Setsumi's Flute

Post by Samyguy » Sat Nov 10, 2018 7:35 pm

Going to be Nice

Setsumi
Swill Maker
Posts: 406
Joined: Tue Sep 07, 2010 10:23 pm
Location: Central South Africa

Re: Setsumi's Flute

Post by Setsumi » Sun Nov 11, 2018 2:34 am

Here is the rest.

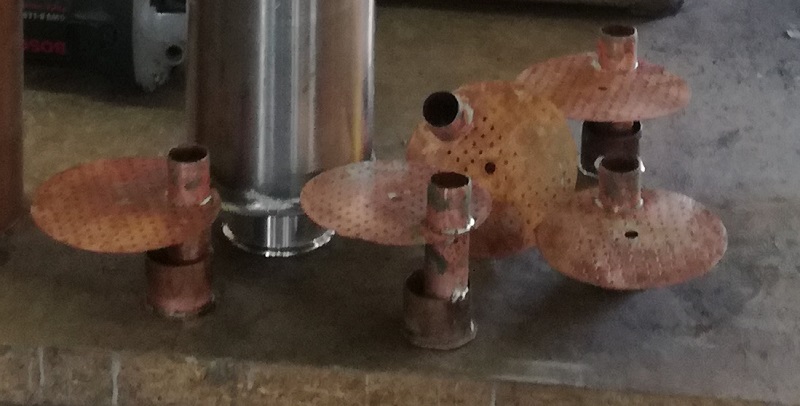

The plates have 22mm downcomers that extent 22mm above the plate and end in a 35mm cap below for vapour lock. A note here, I will shorten the extention to 18mm as I think the 22mm is too much. The plates are on a ss rod hanger 110mm between them. Bottom plate is 50mm from bottom.
Platesd
Platesd
Top cap with 76mm slip coupler for reflux condensor. Cap seals with teflop tape at this time.
Top cap
Top cap
Well here is the newborn. Still dirty and her one eye is still closed.
Mosseltjie
Mosseltjie

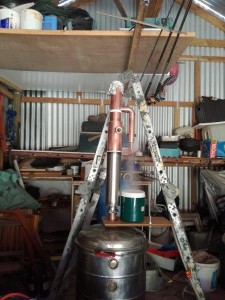

Cleaning run with vinegar.
Vinegar run
Vinegar run

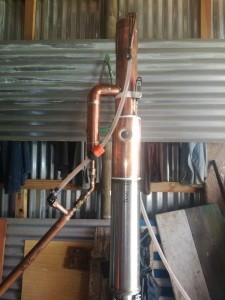

The alcohol run. Here she still have a Liebig that is too long. Will post pics of her shotgun pc later. Reflux is ccvm at this time.
First run
First run
I will comment later on small issues and solutions. But she works a treat
press https://homedistiller.org/forum/viewtopic.php?t=79008
twins viewtopic.php?f=50&t=80886
My wife tells me I fell from heaven covered in white. Why did they let me fall?

User avatar
Yummyrum
Global moderator
Posts: 3257
Joined: Sat Jul 06, 2013 2:23 am
Location: Mid North Coast Aussie

Re: Setsumi's Flute

Post by Yummyrum » Sun Nov 11, 2018 3:48 am

Hell yeah .
She’s a rare type of still but I reckon a good’n :thumbup:
I just recently converted my plated still to VM as I was sick of the bullshit that goes with CM reflux and it proved to be a winner in my mind . So I think you will be very happy going CCVM .... good onya

Setsumi
Swill Maker
Posts: 406
Joined: Tue Sep 07, 2010 10:23 pm
Location: Central South Africa

Re: Setsumi's Flute

Post by Setsumi » Sun Nov 11, 2018 4:24 am

Thanks Yummy. Yes I understand the CCVM well, been running on a packed column a while. It is so simple.
press https://homedistiller.org/forum/viewtopic.php?t=79008
twins viewtopic.php?f=50&t=80886
My wife tells me I fell from heaven covered in white. Why did they let me fall?

Setsumi
Swill Maker
Posts: 406
Joined: Tue Sep 07, 2010 10:23 pm
Location: Central South Africa

Re: Setsumi's Flute

Post by Setsumi » Sun Nov 11, 2018 5:12 am

So full specs of my flute. The 4" column is just shy of 600mm tall. She has 5 perf plates spaced 110mm appart on a ss rod, fist issue.

The only sight glass sits level with the top plate, 1.3m from ground.. even that I am short I have to bend a bit to see. The reflux condenser is ccvm, top is 1.75 from ground level. This is the biggest plus for me. I do not have to climb anything to control the still.

She runs on propane. Burner is rated for 0.39 kg/h. Specs say it is about 5.6kWh. second issue.

I just finished a run, the downcomer on the top plate is much higher than the fluid on the plate. Third issue, but related to the others.

So although the still will run happy at 1.8l/h at 93% temp corrected it there is a marked difference in taste from 1.6l/h.

With this I can live but. The plates does not load good enough, although I can only see the top plate. The individual plates fit tight in the column but the ss rod that keeps the spacing creates torque that mess with the plate to column fit. I will put legs on the plates so that they can be placed individually in the column.

The second issue is that I have to run full power on the burner. This is related to the first issue on the seal to column wall. Any change in burner flame will let the top plate dump. Can only imagine how sensitive the others are. Flyingduchtman had a thread on plate efficiency, the theory says optimal is just above dumping. I believe the burner is ample for my still but I have to fix the weeping to gain contol of heat input.

That will take care of the third issue of the fluid level not reaching the downcomer, although I will shorten the downcomers to 18mm.
press https://homedistiller.org/forum/viewtopic.php?t=79008
twins viewtopic.php?f=50&t=80886
My wife tells me I fell from heaven covered in white. Why did they let me fall?

Setsumi
Swill Maker
Posts: 406
Joined: Tue Sep 07, 2010 10:23 pm
Location: Central South Africa

Re: Setsumi's Flute

Post by Setsumi » Mon Nov 12, 2018 2:01 am

I changed the pc to a shotgun condeser. 3x15mm pipes in a 42mm shell. Cooling length is 470mm.

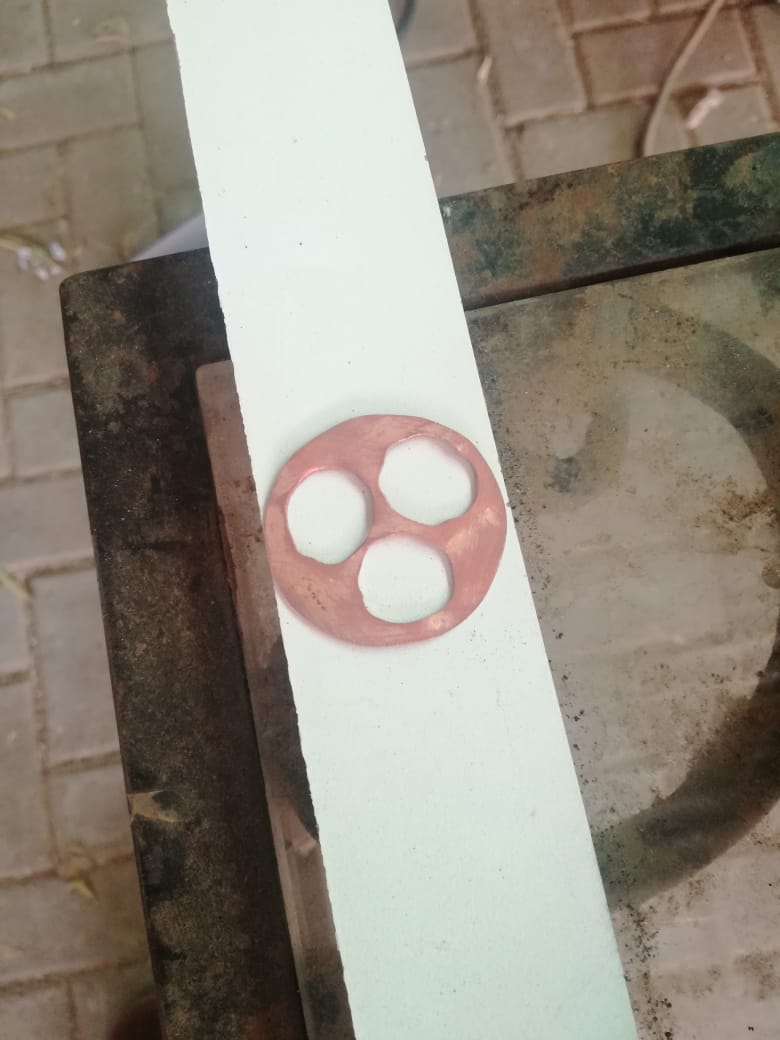

The end plates I had to do by hand.
End plate
End plate
I flared the tubes for the top, used a 8mm rod to start the flare and then peened it on a tube.
Flared
Flared
The end plates was sandwiched with slip couplers to keep in place while soldering.
Done
Done
.
press https://homedistiller.org/forum/viewtopic.php?t=79008
twins viewtopic.php?f=50&t=80886
My wife tells me I fell from heaven covered in white. Why did they let me fall?

Setsumi
Swill Maker
Posts: 406
Joined: Tue Sep 07, 2010 10:23 pm
Location: Central South Africa

Re: Setsumi's Flute

Post by Setsumi » Sun Feb 24, 2019 9:41 pm

Well after a few runs with the CCVM RC, I decided that is how she will stay. When I started the build I knew I would not build a dephlag and just repurposed my 3" columns coil. But I lucked into some 9.3mm copper pipe. The condenser is single coil with a extra inside loop of pipe to act as cold finger. CCVM she will stay, thanks DAD!
Attachments
RC CCVM
RC CCVM
press https://homedistiller.org/forum/viewtopic.php?t=79008
twins viewtopic.php?f=50&t=80886
My wife tells me I fell from heaven covered in white. Why did they let me fall?

User avatar
Swedish Pride
Site Donor
Site Donor
Posts: 2474
Joined: Tue Aug 26, 2014 2:16 am
Location: Emerald Isle

Re: Setsumi's Flute

Post by Swedish Pride » Mon Feb 25, 2019 2:56 am

I like this, bit outside the norm for platers. great job
Don't be a dick

Setsumi
Swill Maker
Posts: 406
Joined: Tue Sep 07, 2010 10:23 pm
Location: Central South Africa

Re: Setsumi's Flute

Post by Setsumi » Mon Feb 25, 2019 6:53 am

Swedish Pride wrote:I like this, bit outside the norm for platers. great job
Thanks, lately there are quite a few threads discussing VM take offs for platers/ flutes.
press https://homedistiller.org/forum/viewtopic.php?t=79008
twins viewtopic.php?f=50&t=80886
My wife tells me I fell from heaven covered in white. Why did they let me fall?

Deon
Novice
Posts: 4
Joined: Fri Jun 07, 2019 3:27 am

Re: Setsumi's Flute

Post by Deon » Tue Jun 11, 2019 4:36 am

Wow, not that I know anything about what you doing....yet, newbie status and still reading. But craftsmanship is top shelf.

Setsumi
Swill Maker
Posts: 406
Joined: Tue Sep 07, 2010 10:23 pm
Location: Central South Africa

Re: Setsumi's Flute

Post by Setsumi » Tue Jun 11, 2019 9:18 am

Thanks, Deon. The build was a bit of scratch and search but in Africa it is a way of life, hey? All the info to start your journey and to become proficient you will find here. Strongs and enjoy.
press https://homedistiller.org/forum/viewtopic.php?t=79008
twins viewtopic.php?f=50&t=80886
My wife tells me I fell from heaven covered in white. Why did they let me fall?

User avatar
Yummyrum
Global moderator
Posts: 3257
Joined: Sat Jul 06, 2013 2:23 am
Location: Mid North Coast Aussie

Re: Setsumi's Flute

Post by Yummyrum » Thu Jan 30, 2020 8:30 pm

Setsumi , curious how many meters or feet of copper is in your coil ?

Setsumi
Swill Maker
Posts: 406
Joined: Tue Sep 07, 2010 10:23 pm
Location: Central South Africa

Re: Setsumi's Flute

Post by Setsumi » Fri Jan 31, 2020 4:23 am

Yummy half a pancake, around 7 meters. but you dont need that much. only reason I use the 7m is it helps with positioning the coil for take off. 1 to 2 coils out the top for drips on fores and 3 to 4 for hearts. a ss eating knive in the coils keep it nicely in place.
