Setsumi's control box

Post by Setsumi » Mon Mar 15, 2021 12:30 am

So I finally got to electric. but in South Africa when our national grid is under strain the supplier shed users....

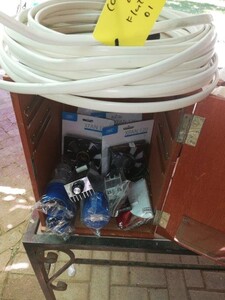

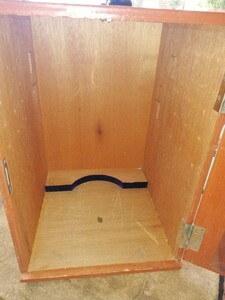

well it started with a microscope box, the microscopes were sold but the seller did not knew about the boxes.

and then a lot of stuff, mostly from online via china

look i have trouble posting pics. will update soon
Last edited by Setsumi on Mon Mar 15, 2021 12:39 am, edited 1 time in total.
My first flute
My press
My twins
My controller
My wife tells me I fell from heaven covered in white. Why did they let me fall?

User avatar
Yummyrum
Global moderator
Posts: 3998
Joined: Sat Jul 06, 2013 2:23 am
Location: Mid North Coast Aussie

Re: Setsumi's control box

Post by Yummyrum » Mon Mar 15, 2021 12:37 am

Awesome . You got the box .
LOL . Is that one of those Wooden Microscope Boxes . You got me interested . I found about a dozen of those under the Preproom at work recently . Was thinking about a use for them :thumbup:

Setsumi
Rumrunner
Posts: 683
Joined: Tue Sep 07, 2010 10:23 pm
Location: Central South Africa

Re: Setsumi's control box

Post by Setsumi » Mon Mar 15, 2021 12:40 am

Yummyrum wrote:
Mon Mar 15, 2021 12:37 am
Awesome . You got the box .
LOL . Is that one of those Wooden Microscope Boxes . You got me interested . I found about a dozen of those under the Preproom at work recently . Was thinking about a use for them :thumbup:
yup, i update my first post with images.
My first flute
My press
My twins
My controller
My wife tells me I fell from heaven covered in white. Why did they let me fall?

Setsumi
Rumrunner
Posts: 683
Joined: Tue Sep 07, 2010 10:23 pm
Location: Central South Africa

Re: Setsumi's control box

Post by Setsumi » Mon Mar 15, 2021 12:46 am

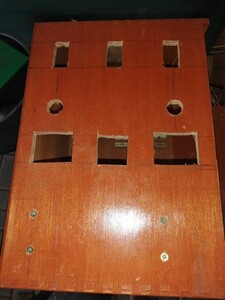

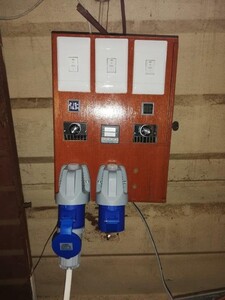

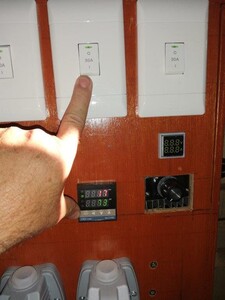

the box have 2 SCR controlles for stilling and a PID for brewing. each controller isisolated with a double pole 30A isolater. and couplers is 32A industrial.
the PID can be on while the outlet is isolated. the SCR on the right is not wired yet, it will be on its own line.

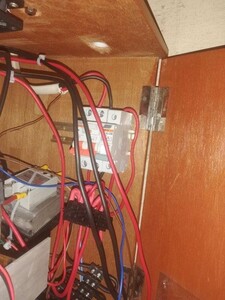

onboard i have an earth leakage and overload protection. wire is 4mm. it will drive a 4Kw element.
My first flute
My press
My twins
My controller
My wife tells me I fell from heaven covered in white. Why did they let me fall?

Setsumi
Rumrunner
Posts: 683
Joined: Tue Sep 07, 2010 10:23 pm
Location: Central South Africa

Re: Setsumi's control box

Post by Setsumi » Wed Mar 17, 2021 9:01 pm

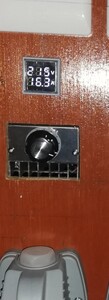

what bothers me is my Amp/Volt meter readings drop as soon as i switch the SCR on. the volts will read 220V before load but as soon as the heater recieves current the volts drop and the amps read low for the heater rating.
