The old one is 3/4 inside 1", about 850 mm long, and is just too big and unwieldy for my purposes, and is not as efficient as I would like for a once through tap water system (it would be fine for a recirculating reservoir system).

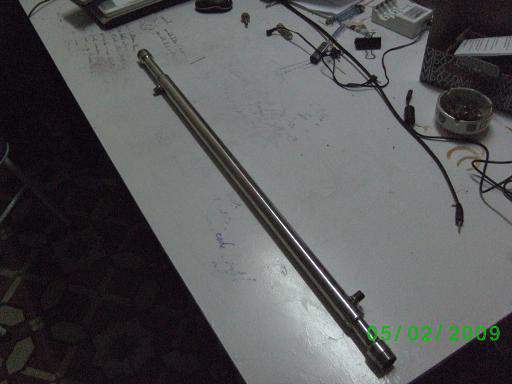

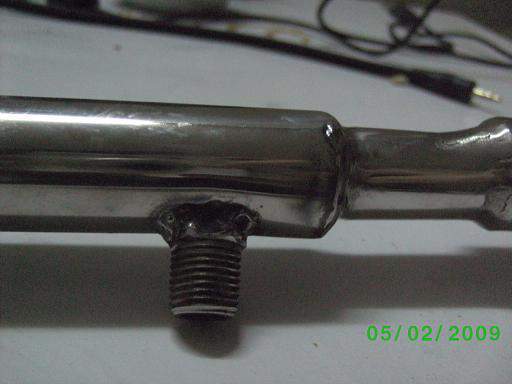

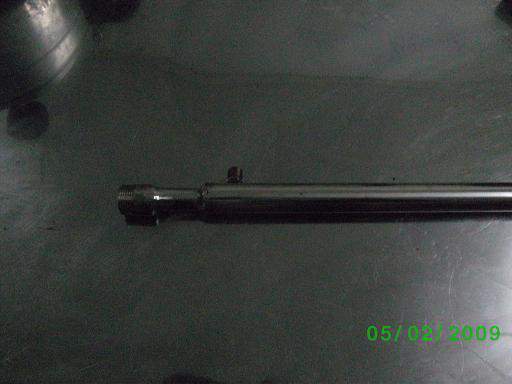

The new one is 1/2 inside 3/4, and a bit shorter (and a lot lighter). This time I stripped a piece of 2.5mm^2 electrical copper cable, wound it around the 1/2 internal tube at about 35º, and brazed it on in several places. It is an easy but snug fit inside the 3/4 external tube.
Obviously the purpose is to make the coolant in the jacket spiral around the internal tube, not just travel straight up the side of it. This makes the coolant travel a lot further inside the Liebig, makes it more turbulent along the way, and ensures that all of the coolant will contact all of the internal tube on its path. This design feature is particularly useful when the Liebig is laying at some horizontal angle and/or is running hard, ie for pot stilling and stripping runs, because the heat tends to concentrate on the bottom side of the Liebig.
I had seen the basic idea mentioned before at HD, or maybe Yahoo, or both. Also when I used to fix medical and lab gear many centuries ago I saw some small specialised condensers that used some variation of spinning the coolant and/or vapour. Spinning can increase the length of the path travelled by the coolant/vapour by many times, without increasing the overall length of the condenser. Nothing new in the basic idea. It is not original from me.
The standard Liebig is not a very efficient heat exchanger, it's okay but not great, and this is one way of seriously improving the efficiency, get the coolant turning (or the vapour, or both, depending on the condenser design). The other is some turbulence in the vapour and coolant paths.
Well, that's my theory for today.

I report back on its performance when I run it.
