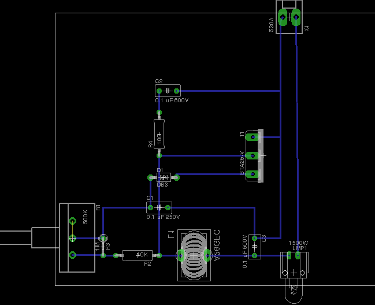

In this image we can see a capacitor connected to the brown line and the blue line
before the element and inductor is added after the resistor and before the capacitor.
This is to elimnate RFI. It is written that we must have 0.1 uF cap and 200 uH inductor (toroid).
There is also a snubber network connected to the M1 and M2 on the triac.

- 100.jpg (15.8 KiB) Viewed 9737 times

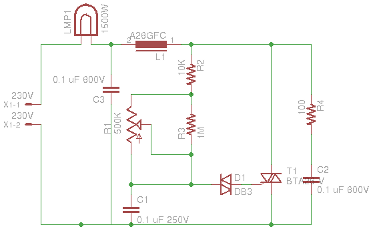

I added all that we saw to this image

- newphase.jpg (24.28 KiB) Viewed 9737 times
Would this drawing make sense?
Now here are the components I can have:
Capacitor:
3x Polyester Film Capacitor 0.1 uF 400V
Resistor:
100 ohm 1/2W 5%
10K ohm 1W 5%
1M ohm 1W 5%
Potentiometer:
500K Lin 1/2W up to 2W (is 1/2W ok?)
Diac:
DB3
Triac:
BTA41-700B
Inductor:
200 uH
How does this inductor look like? Is it like that from the image?
Can I make it with my amateur skills?
How do you know what wattage the resistor should have?
Do you think I am just overreacting over the EMI/RFI?
Should I not bother make any changes to the schematic?
